Home / Rubber Matting / General Purpose / Fine Ribbed [Corrugated] Rubber Runner Matting

Do you need help or advice? Call 01702 548800

Item Code: SM500

Fine Ribbed [Corrugated] Rubber Runner Matting

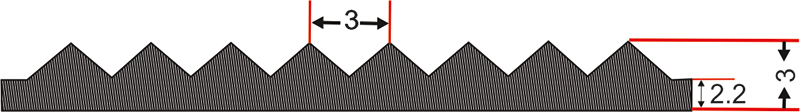

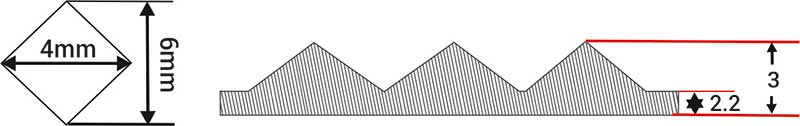

SM500 Fine Ribbed [Corrugated] Rubber Runner Matting is an economy grade rubber matting with a fine ribbed pattern design on one side and a cloth impression pattern on reverse.
Available in three thickness’: 3mm, 4.5mm and 6.0mm. Ideally suited for walkways, tread mats, runners and general purpose industrial applications. Colours to special request and minimum batch.

  • Economically priced
  • Easily cut to size & shape
  • Low relief directional tread
  • Low maintenance
  • Non slip when wet
  • Cut lengths to order

This grade can be produced in varying width, length and thickness formats and in a variety of colours to special order. These would be subject to minimum batch run quantities, usually 500 M2 per size/colour

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
10m x 0.9m x 3mm 4.5
10m x 1.0m x 3mm 4.5
10m x 1.2m x 3mm 4.5
10m x 1.0m x 4.5mm 6.75
10m x 1.2m x 4.5mm 6.75
10m x 1.0m x 6mm 9.0
10m x 1.2m x 6mm 9.0
Specifications CompoundValues [typical]
Colour:: Black
Compound:: SBR/NR
Hardness [shore A]:: 70
Density[SG]:: 1.5
Tensile Strength (Kg/cm2): 30.0
Elongation at break (%): 200
Abrasion Resistance:: 300 mm3
Minimum Temperature: -30°C
Maximum Temperature: +70°C
