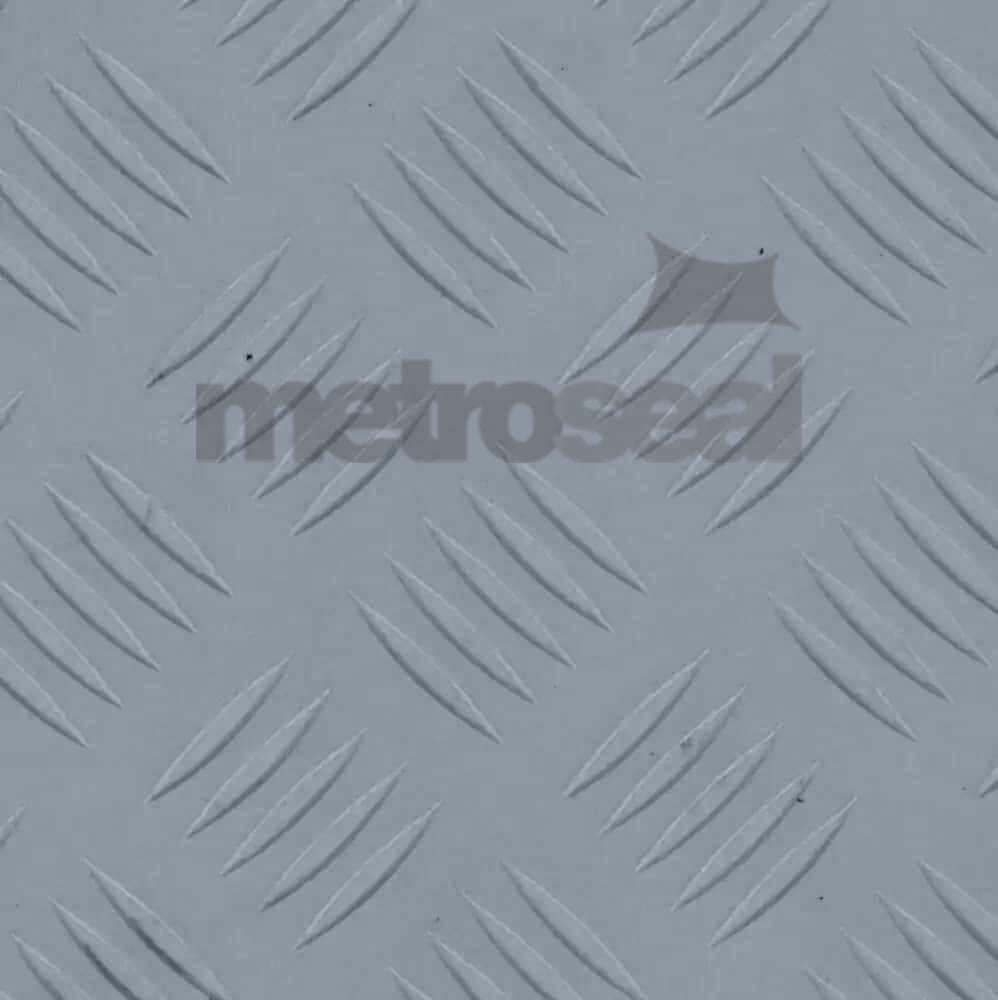

Checker Plate PVC Matting – 2m Wide

SKU: SM565

Roll Size: 10m

This product is available for bespoke manufacturing, please choose an option below:

Select Options

CHARACTERISTICS	STANDARDS	UNITS	SM564
Indoor Air Quality	CA Section 01350 (≤ 0.5 mg /m3)	Floorscore Certified (SCS – FS – 04547)	Yes
Description
Type of floor covering	EN 13845 \| EN 13553	Classification	5 Bar Checker Vinyl : Super Anti-Slip
General performance	BS EN ISO 10874		34: Very Heavy Commercial 43: Heavy Light Industrial
Usage / Wear resistance	BS EN 649	Group	P (≤ 4 mm3)
Special Treatment			Easy Maintenance
Overall thickness	ISO 24346 – EN 428	mm	1.50	2.00
Weight	ISO 23997 – EN 430	g/m2	2750	3500
Sheet size	ISO 24341 – EN 426	m (width)	2
		m (length)	15 / 20
		m2 (surface area)	30 / 40
Tile Size	EN 427	cm x cm (length x width)	30 x 30 \| 50 x 50 \| 61 x 61
Castor chair test	ISO 4918 – EN 425	Type of use	Continuous
Slip resistance	DIN 51130	Ramp Test	R11
	EN 13893 ASTM D2047	Coefficient of friction	DS (> 0.30) Pass (0.70 avg)
Dimensional stability	ISO 23999	%	≤ 0.40
Flexibility	ISO 24344	20mm mandrel	No cracking
Seam Strength	ISO 16906	N/50mm	Pass
Residual indentation	ISO 24343 – 1 – EN 433	mm	≤ 0.10
	ASTM F970	psi	800
			≥ 6
Colour fastness to light	EN ISO 105 – B02	Degrees
	ASTM F1515	ΔE ≤ 800 after 300 h (colour change)	Pass
Static electrical propensity	EN1815	kV	< 2.0
Thermal resistance	EN 12667	m2 k/W	Approx 0.01m2k/W (suitable at 27°C)
Heat Stability	ASTM 1514	ΔE ≤ 0.80 (colour change)	Pass
Reaction to fire	EN ISO 9239-1	kW/m2	≥ 8
	EN ISO 11925-2		Pass
	EN 13501-1 : 2007+A1	Class	Bfl – S1
	ASTM E 648	Type	1
Smoke density	ASTM E 662	Dm	< 450
