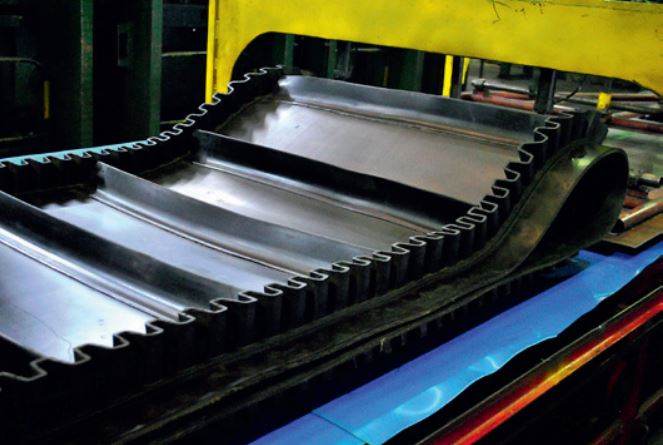

Metroseal’s cross-stabilised conveyor belts guarantee superior transverse rigidity, thanks to incorporated monofilament plies. This ensures a stable and well-tensioned belt.

Available with or without moulded edges, offer versatility with monofilament insertions under the top or bottom cover, accommodating specific requests.

With a flat profile, perfect for sidewalls and cleats, these belts boast a maximum width of 1,600 mm. They adhere to DIN 22102-1 – 91 – W – X – Y – Z standards, excelling in carrying heavy loads at incline angles up to 75 degrees.

Ideal for space-constrained areas, cross-stabilised belts facilitate efficient operations with steep inclines.

Dimensions	Values	Tolerances
Width [mm]	800-1600 for moulded edges	±1%
	500-1600 for cut edges
Top cover	On customers demand	±0.2
Bottom cover	On customers demand	±0.2
Thickness	4-10	±1
	11-25	±10%
Number of insertions monofilament	one or two

Number of piles	2-5
Length [mm]	On customers demand

	Ply EM80/03	Ply EM80/06	Ply EM80/08	Ply EM123	Ply EM160
Material	Polyester Polyester	PES 1100/1 PES Ø0.80	PA 66 3700 DTEX MONO PES Ø0.80	Polyester Polyester	Polyester Polyester
– warp
– weft
Structure of Ply/dm	70 122	6.6 6.7	67±2 47±2	100 70	90 70
– warp
– weft
Tensile strength warp N/mm	80	30	160	150	210
Tensile strength weft N/mm	40	90	110	96	90
Weight, dipped g/m2	310	380	670±10	720	845
Thickness, mm	0.45	0.75	1.2	1	1.25
