PROPERTIES |
VALUES |

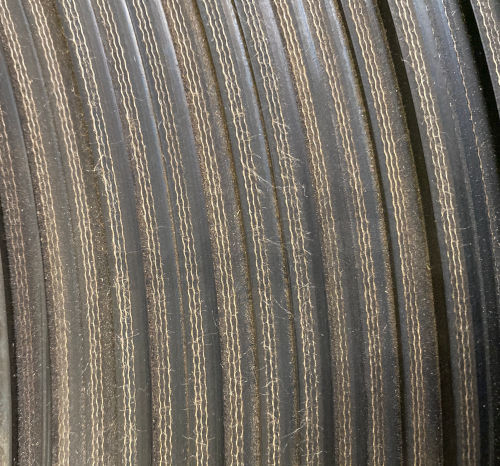

| Carcass | |
| The carcass is built up of 2 fabrics of polyester warp and polyamide weft: | |
| Tensile Strength for 50 x 200mm Longitudinal, kgf Min Tranversal kgf Min |
2000 400 |
| Adhesion between plies [N/mm]: | 5 |
| Thickness [mm]: | 2.2 |
| Elongation at 10% TS nom [&]: | MAX 1.5 |
| Covers: | |
| Top cover thickness [mm]: | 3 |
| Heat resistant, anti-static as per ISO284, SBR: | |
| Bottom cover thickness [mm]: | 1.5 |
| Minimum adhesion between cover and carcass [N/mm]: | 5 |
| Top: | 5 |
| Bottom: | 4.5 |
| Technical data of rubber covers DIN Y | |
| Tensile strength in accordance to SR ISO 37 | 200 kgf/cmΒ² |
| Elongation at break [%]: to SR ISO 37 | 400% |
| Abrasion resistance [mmΒ³]: | 150 |
| Ozone resistance ( 50 pphm: elongation 15%/ 72 hrs / 40Β°C +/- 2Β°C) |
No Cracks |
| Surface electrical resistance in accordance with SR EN ISO 284 Ξ, max |
3 x 10βΈ |
| Resistance to accelerated ageing (168hr @ 70Β°C) in accordance with ISO 1880 -Change of Tensile Strength – Decrease of elongation at break |
+/- 25% |
| Max abrasion resistance [mmΒ³]: | 150 |
| Hardness, Β±5ΒΊ [ΒΊShore A]: | 65Β±5 |
