Item Code: SM152DB

Black High Abrasion Fabric Backed Grade 60° Shore

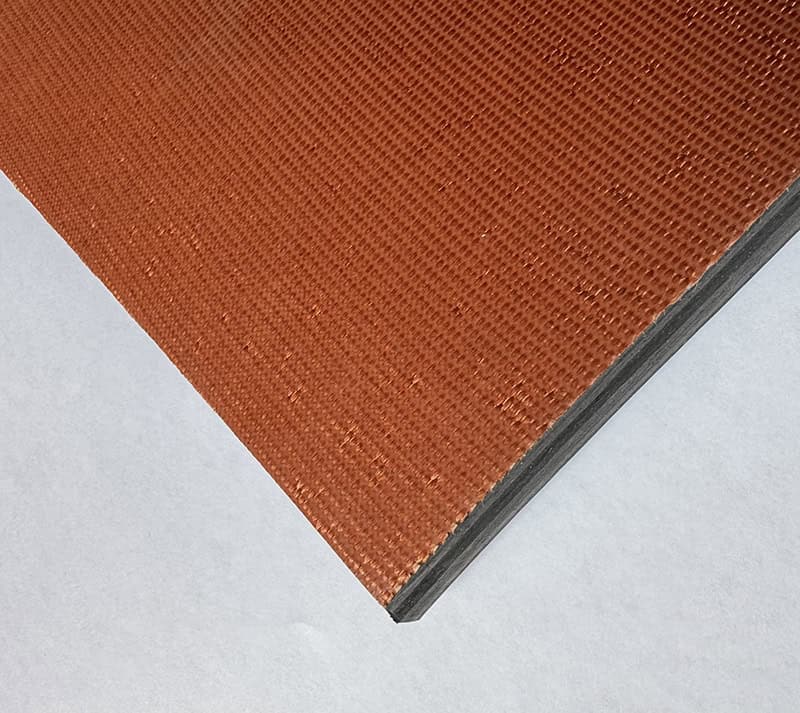

SM152DB Black High Abrasion Grade 60° Shore is a high abrasion resistant rubber sheet material with a Heavy Duty Fabric Layer on one side particularly suitable for applications such as snow plough rubbers, scraper blades, wipers and hard chute lining. It is a Natural Rubber with a hardness of 60° shore.

N.B. All Metroseal sheeting can be supplied plain or with self adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@metroseal.co.uk

The above sheeting is manufactured from top quality virgin materials and ingredients meeting high standard of performance.

  • Material Profile: See below
  • Thickness: 0.5mm to 50mm
  • Sheet Size: 1.4m wide in 5m rolls
  • Finish: Plate finish
  • Cutting: Standard press-tools (full steel construction advised)

This Product is REACH, RoHS, PAH and CE Compliant

Other grades, colours and finishes are available – subject to minimum batch quantities

Properties test method
values
fps units
test method
values
metric units
SPECIFIC GRAVITY DIN 53508 1.17±0.05 ASTM D297 1.17±0.05
HARDNESS DIN 53505 60 ± 5 Sh A ASTM D2240 60 ± 5 Sh A
TENSILE STRENGTH ( min ) DIN 53504 1638 PSI ASTM D412 115 kg/cm2
ELONGATION AT BREAK ( min ) DIN 53504 450% ASTM D412 450%
ABRASION RESISTANCE ( max ) DIN 53516 120 mm3 ASTM D5963 120 mm3
COMPRESSION SET (70ºC/24 hrs/25% compression) (max) DIN ISO 815-1 30% ASTM D395 METHOD B 30%
TEAR RESISTANCE ( Angular ) min DIN 53515 168 Lbs/Inch ASTM D624 30 Kg/cm
CHANGE IN PROPERTIES AFTER
HEAT AGEING FOR ( 72 hrs. AT 70 ºC ) ASTM D573
--- HARDNESS (Pts) + 5 (Max) + 5 (Max)
--- TENSILE STRENGTH (%) + 10 / - 25 + 10 / - 25
--- ELONGATION AT BREAK (%) + 10 / - 25 + 10 / - 25
VOLUME SWELL : AT 70ºC FOR 72 HRS ASTM D 471
IN IRM OIL NO.1 NOT RECOMMENDED NOT RECOMMENDED
IN IRM OIL NO.2 NOT RECOMMENDED NOT RECOMMENDED
IN IRM OIL NO.3 NOT RECOMMENDED NOT RECOMMENDED
CHEMICAL RESISTANCE
--- OZONE FAIR ASTM D 1149 FAIR
--- DILUTE ACIDS AND BASES GOOD GOOD
--- CONCENTRATED ACIDS AND BASES NOT RECOMMENDED NOT RECOMMENDED
--- OILS NOT RECOMMENDED NOT RECOMMENDED
--- SOLVENTS NOT RECOMMENDED NOT RECOMMENDED
TEMPERATURE RANGE -25º to + 70ºC -25º to + 70ºC
COLOUR BLACK BLACK
