Item Code: SM146

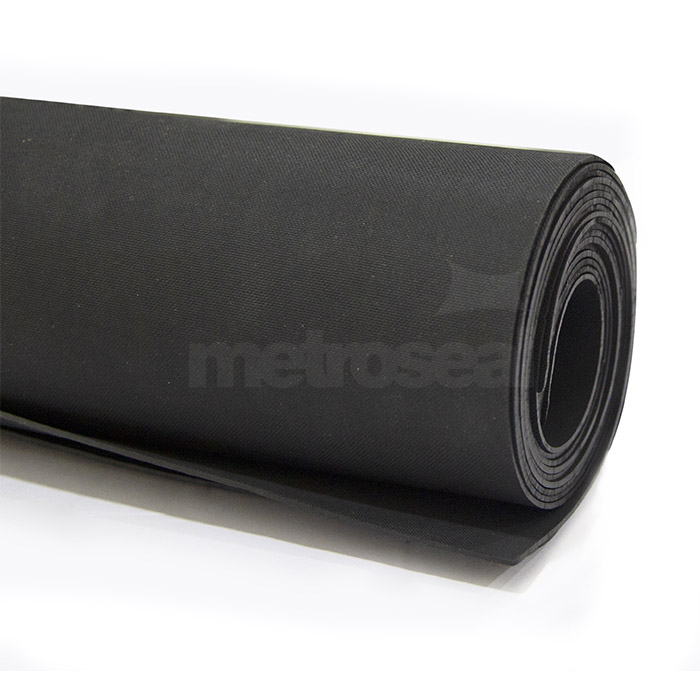

Black EPDM Roofing Membrane Sheeting

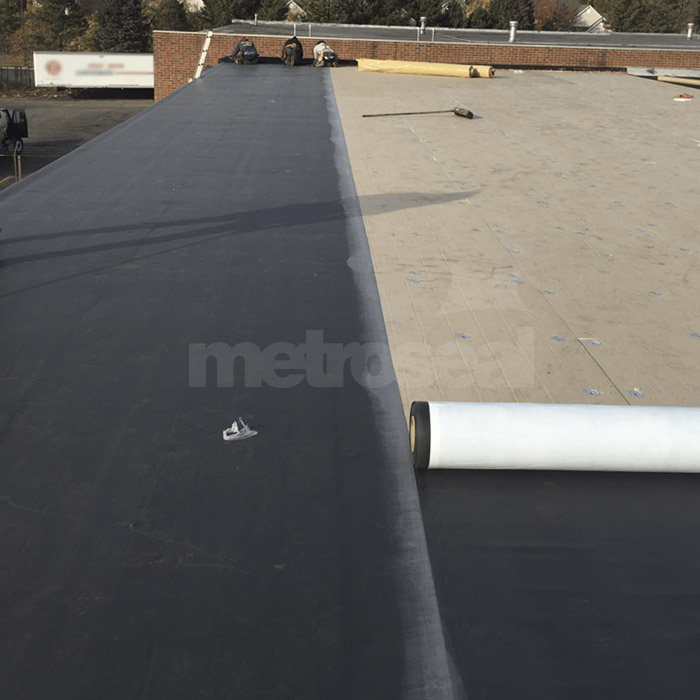

Black EPDM Roofing Membrane Sheeting is an EPDM generally used for modern day roofing.

N.B. Metroseal Sheeting can be supplied plain or with self adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@metroseal.co.uk

  • Material Profile: See below
  • Thickness: 0.5mm to 50mm
  • Sheet Size: 1.4m wide in 5, 10 and 20m rolls
  • Finish: Smooth finish
  • Cutting: Standard press-tools

This Product is REACH, RoHS, PAH and CE Compliant

Other grades, colours and finishes are available – subject to minimum batch quantities



PROPERTIES

TEST METHOD

VALUES FPS UNITS

TEST METHOD

VALUES METRIC UNITS

COLOUR

VISUAL

BLACK



BLACK

DENSITY



1.10



1.10

HARDNESS

ASTM D 2240

65 ± 10 SH A

DIN 53505

65 ± 10 SH A

TENSILE STRENGTH ( MIN )

ASTM D 412

90KG/CM

DIN 53504

1280.7 PSI

ELONGATION AT BREAK ( MIN )

ASTM D 412

300%

DIN 53504

300%

ABRASION RESISTANCE ( MAX )

ASTM D5963

250 MM

DIN 150 4649

250 MM

POLYMER CONTENT (%)



100



100



COMPRESSION SET (70 C/24 HRS) \(MAX)

ASTM D395 METHOD B



24%



DIN 180 815



24%



TEAR RESISTANCE (ANGULAR) MIN

ASTM D624 METHOD C



30 KG/CM



DIN 53506



167.97 LBS/INCH

RESISTANCE TO HEAT AGING









PROPERTIES AFTER 166 HRS @ 115C

ASTM D 573







TENSILE STRENGTH MIN.

ASTM D 412

85KGS. /CM2

DIN 53505

1209.55 PSI

ELONGATION ( % )

ASTM D 412

210

DIN 53504

210

LINEAR DIMENSIONAL CHANGE MAX. %

ASTM D 1204

+/-1





BRITTLENESS TEMPERATURE C

ASTM D 746

-45





RESISTANCE WATER ABSORPTION, AFTER 166HRS. ° IMMERSION @ 70 C









% CHANGE IN MASS

ASTM D 471

4.0

DIN ISO 1817

4.0

WATER VAPOR PERMEABILITY MAX. PER- MILLS

ASTM E 96

3.5





TEMPERATURE RESISTANCE



-30 TO +120°C
