Item Code: SM218

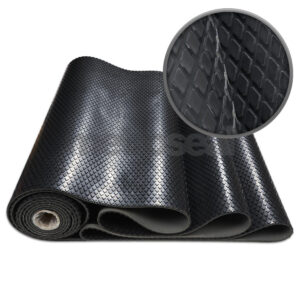

Black Diamond Drum Lagging – Mini Diamond

Black Diamond Drum Lagging – Mini Diamond is a high abrasion resistant rubber sheet material particularly suitable for Drum Lagging. It is a Natural Rubber with a hardness of 65° shore.

Also available with a Neoprene Bonding Layer.

N.B. All Metroseal sheeting can be supplied plain or with self adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@metroseal.co.uk

The above sheeting is manufactured from top quality virgin materials and ingredients meeting high standard of performance.

  • Material Profile: See below
  • Thickness: 0.5mm to 50mm
  • Sheet Size: 1.5 or 2.0m wide
  • Finish: Plate finish
  • Cutting: Standard press-tools (full steel construction advised)

This Product is REACH, RoHS, PAH and CE Compliant

Other grades, colours and finishes are available – subject to minimum batch quantities

Properties test method
values
fps units
test method
values
metric units
SPECIFIC GRAVITY ASTM D297 1.17 DIN 53508 1.17
HARDNESS ASTM D2240 65 ± 5 Sh A DIN 53505 65 ± 5 Sh A
TENSILE STRENGTH ( min ) ASTM D412 1638 PSI DIN 53504 115 kg/cm2
ELONGATION AT BREAK ( min ) ASTM D412 450% DIN 53504 450%
ABRASION RESISTANCE ( max ) ASTM D5963 120 mm3 DIN 53516 120 mm3
COMPRESSION SET (70 ºC/24 hrs/25% set) (Max) ASTM D395 METHOD B 30% DIN 53517 30%
TEAR RESISTANCE ( Angular ) min ASTM D624 168 Lbs/Inch DIN 53515 30 Kg/cm
CHANGE IN PROPERTIES
HEAT AGEING (72 hrs. AT 70 ºC ) ASTM D573
--- HARDNESS (Pts) + 5 (Max) + 5 (Max)
--- TENSILE STRENGTH (%) + 10 / - 25 + 10 / - 25
--- ELONGATION AT BREAK (%) + 10 / - 25 + 10 / - 25
VOLUME SWELL : AT 70ºC FOR 72 HRS/IN ASTM D 471
ASTM OIL NO.1 NOT RECOMMENDED NOT RECOMMENDED
ASTM OIL NO.2 NOT RECOMMENDED NOT RECOMMENDED
ASTM OIL NO.3 NOT RECOMMENDED NOT RECOMMENDED
CHEMICAL RESISTANCE
--- OZONE ASTM D 1149 FAIR FAIR
--- DILUTE ACIDS AND BASES GOOD GOOD
--- CONCENTRATED ACIDS AND BASES NOT RECOMMENDED NOT RECOMMENDED
--- OILS NOT RECOMMENDED NOT RECOMMENDED
--- SOLVENTS NOT RECOMMENDED NOT RECOMMENDED
TEMPERATURE RANGE -30º to + 70ºC -30º to + 70ºC
COLOUR & DESIGN BLACK /RED /BLUE WITH GREY NEOPRENE BONDING LAYER & DIAMOND DESIGN BLACK /RED /BLUE WITH GREY NEOPRENE BONDING LAYER & DIAMOND DESIGN
