Item Code: SM360

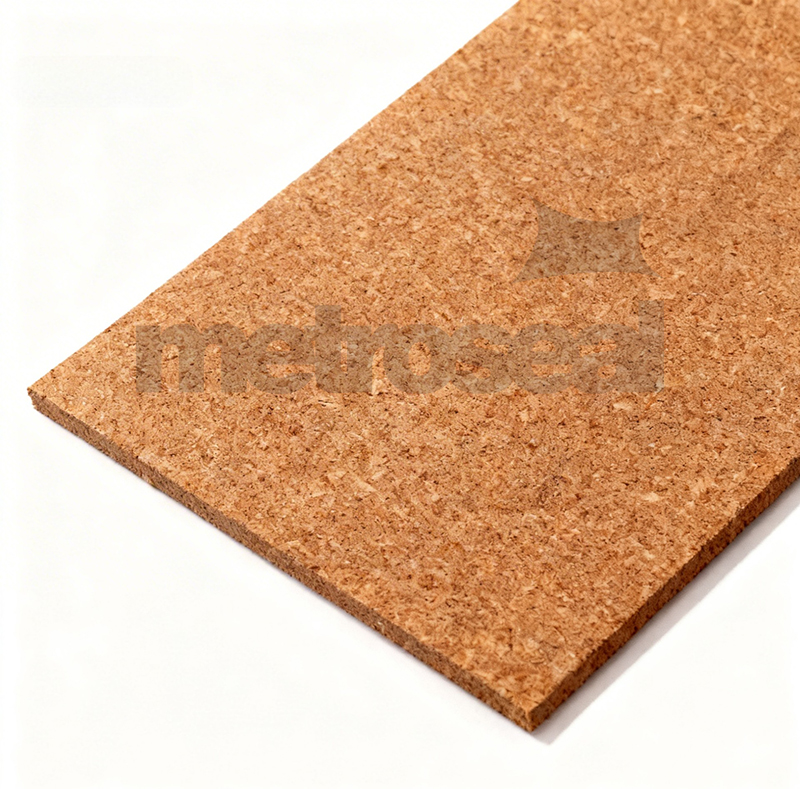

Rubber / Cork Anti-Vibration Grade

SM360 Rubber/Cork Anti-Vibration Grade is a specially formulated Anti-Vibration rubber bonded cork sheet material that has excellent characteristics for applications involving machine mounting with high anti-vibration and noise deadening qualities.

N.B. All Metroseal sheeting can be supplied plain or with self adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@metroseal.co.uk

  • Material Profile: see below
  • Thickness: 0.5mm to 50mm
  • Sheet Size: 1m wide in 1m sheets
  • Finish: Natural finish
  • Cutting: Standard press-tools

Other grades, colours and finishes are available – subject to minimum batch quantities

Technical Data

Stock Roll Sizes [m x m x mm]Surface FinishWeight [kg/M2]
6mm x 1000mm x 1m Nat 4.80
10mm x 1000mm x 1m Nat 8.00
13mm x 1000mm x 1m Nat 11.26
20mm x 1000mm x 1m Nat 16.00
25mm x 1000mm x 1m Nat 20.00
15mm x 1000m x 1m Nat 12.00
Specifications CompoundValues [typical]
Hardness Shore (±5): 65
Dimensional Changes, % MAX: 0.2
Tensile Strength KPA. MIN: 2200
Compressibility at 2800 KPA %: 35-45
Recovery at 2800 KPA % Min: 90
Density KG/M3: 800-900
Max Load: 2800 PSI
Working Load Range: 2200 to 2400 PSI
Flexibility: 4XT
Temperature Range: -40 to 120°C
Material:
Rubber: Synthetic
Granulated Cork: 1.0 / 3.0 MM
Colour: Natural
