Home / Rubber Matting / Electrical Safety Matting / Fine Ribbed Rubber Matting to ASTM D178 Type 1 Class4

Item Code: SM555

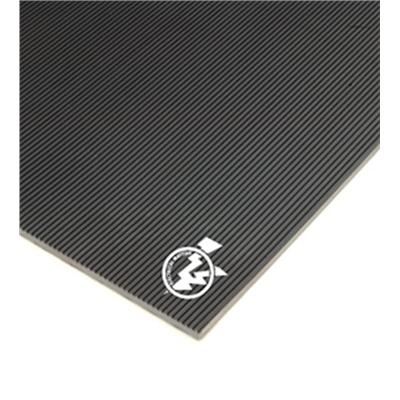

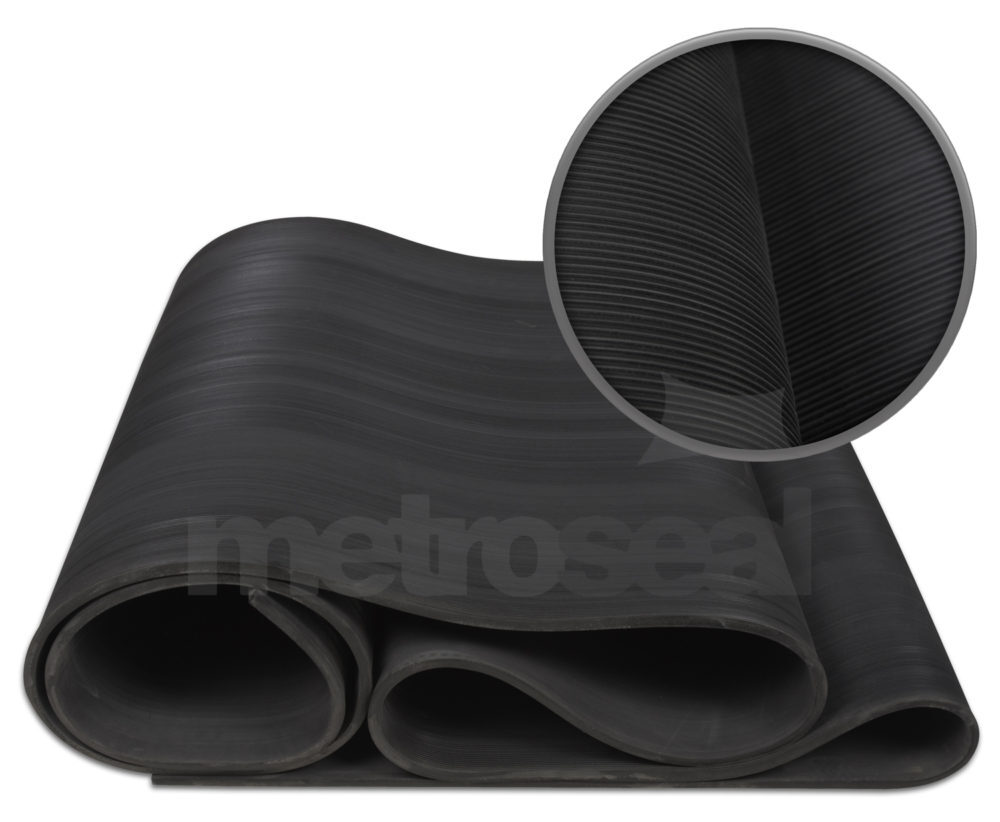

Fine Ribbed Rubber Matting to ASTM D178 Type 1 Class4

SM555 Fine Ribbed Rubber Matting to ASTM D178 Type 1 Class 4 is a High Quality electrical safety matting fully tested to 30,000 volts with the regulation standard, stamped on the reverse of the roll at 1000mm intervals.
Dielectric test voltage: 50,000 volts
Surface proof tested: 40,000v
Maximum safety working voltage of 36,000v

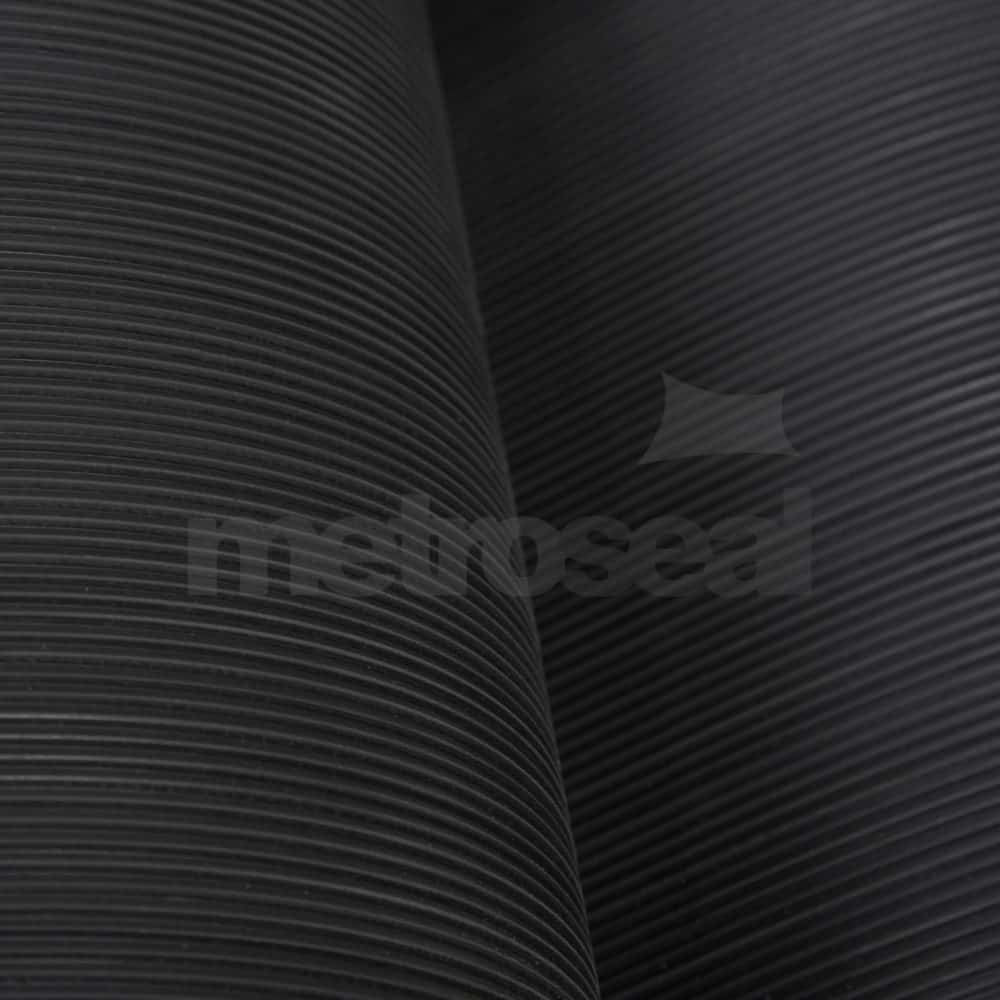

It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse.

  • Fully tested to specification
  • Health & Safety regulation material
  • Fully traceable supply
  • Regulatory branding on reverse
  • Anti-slip finish
  • Low maintenance
  • THIS GRADE DOES NOT CONTAIN RECYCLED RUBBER
  • Cut lengths available to order.

SM555 can also be supplied to order in colours and flame retardant, low smoke emission grades

Properties

Values

Colour

Black

Polymer

NR

Density (Specific Gravity)

1.50

Hardness oShore A

70±5

Tensile Strength kg/cm2

40.0

Elongation at Break

200%

Temperature Resistance, MAX

-20 to +70oC

Abrasion Resistance

180mm3

Tested Voltage

50kv

Standard

ASTM
