Item Code: SM554

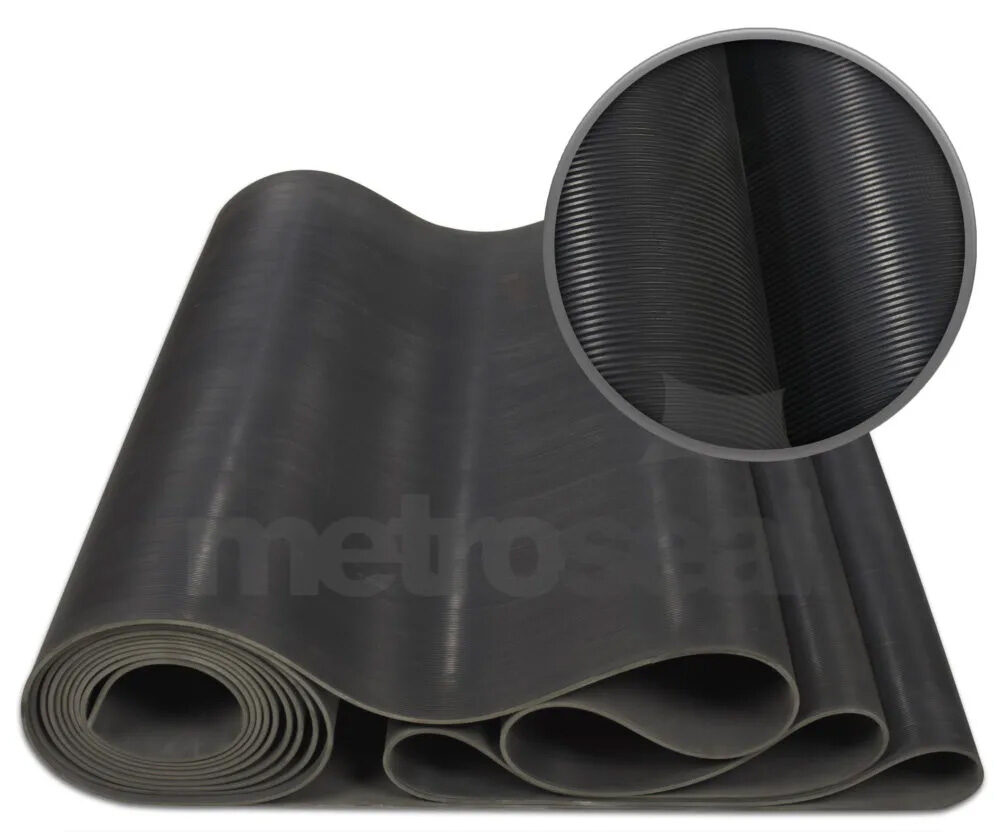

Fine Ribbed Rubber Matting to ASTM D178 Type 1 Class 3

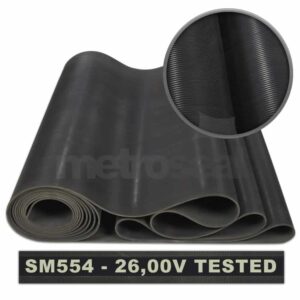

SM554 Fine Ribbed Rubber Matting to ASTM D178 Type 1 Class3 is a high quality electrical safety matting fully tested to 30,000 volts with the regulation standard, stamped on the reverse of the roll at 1000mm intervals.
Dialectric test voltage: 40,000 volts,
Surface proof tested: 20,000v
maximum safety working voltage of 26,000v.

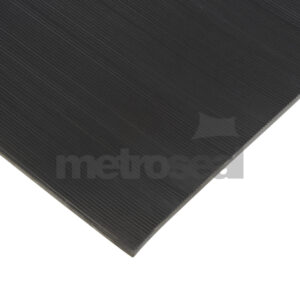

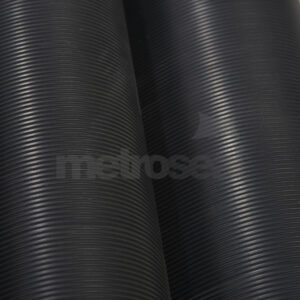

It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse.

  • Fully tested to specification
  • Health & Safety regulation material
  • Fully traceable supply

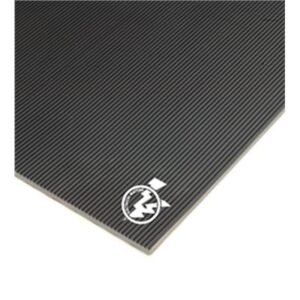

  • Regulatory branding on reverse
  • Anti-slip finish
  • Low maintenance
  • THIS GRADE DOES NOT CONTAIN RECYCLED RUBBER

Cut lengths available to order. SM554 can also be supplied to order in colours and flame retardant, low smoke emission grades

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
10m x 0.91m x 9.5mm 8.45
Specifications CompoundValues [typical]
Colour: Black
Compound:: NR
Hardness Shore 'A' (±5): 70
Density (S.G.): 1.50
Tensile Strength (Kg/cm2): 40
Elongation at break (%): 200
Abrasion Resistance [mm³]: 180 mm³
Minimum Temperture: -20°C
Maximum Temperture: +70°C
Test Voltage (See Data): 40kv
Standard: ASTM
