Item Code: SM580

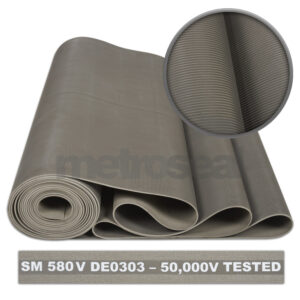

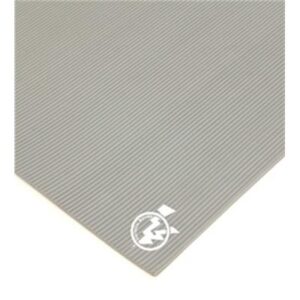

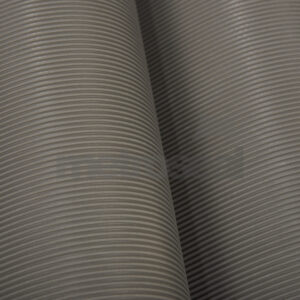

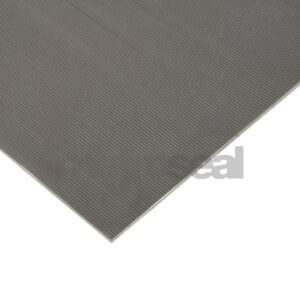

Fine Ribbed Rubber Matting to 50,000v – Grey VDE0303 Grade

SM580 Fine Ribbed Rubber Matting to 50,000v – Grey Previously VDE0303 Grade is a High Quality matting tested to 50,000 volts and in accordance to VDE0303 European specification with the regulation standard, stamped on the reverse of the roll at 1000mm intervals. Fully certified and tested to 50,000 volts with a recommended safety working voltage of 1,000v. It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse. A very commonly requested and approved Electrical Safety Matting specified by our customers in the UK and Europe.

  • Fully tested to specification
  • Health & Safety regulation material
  • Fully traceable supply
  • Regulatory branding on reverse
  • Anti-slip finish
  • Low maintenance
  • Cut lengths available to order.

SM580 can also be supplied to order in colours and flame retardant, low smoke emission grades

Technical Data

Stock Roll Sizes [m x m x mm] Weight [kg/M2]
10m x 0.91m x 4.5mm 5.20
10m x 1.0m x 4.5mm 5.20
10m x 1.2m x 4.5mm 5.20
Specifications Compound Values [typical]
Colour: Grey
Compound:: SBR/NR
Hardness [Shore A]:: 65°
Density [SG]:: 1.3
Tensile Strength: [MPA]: 5 MPA
Elongation [min]: : 250%
Abrasion Resistance [mm³]: 180 mm³
Minimum Temperture: -20°C
Maximum Temperture: +70°C
