Item Code: ER40

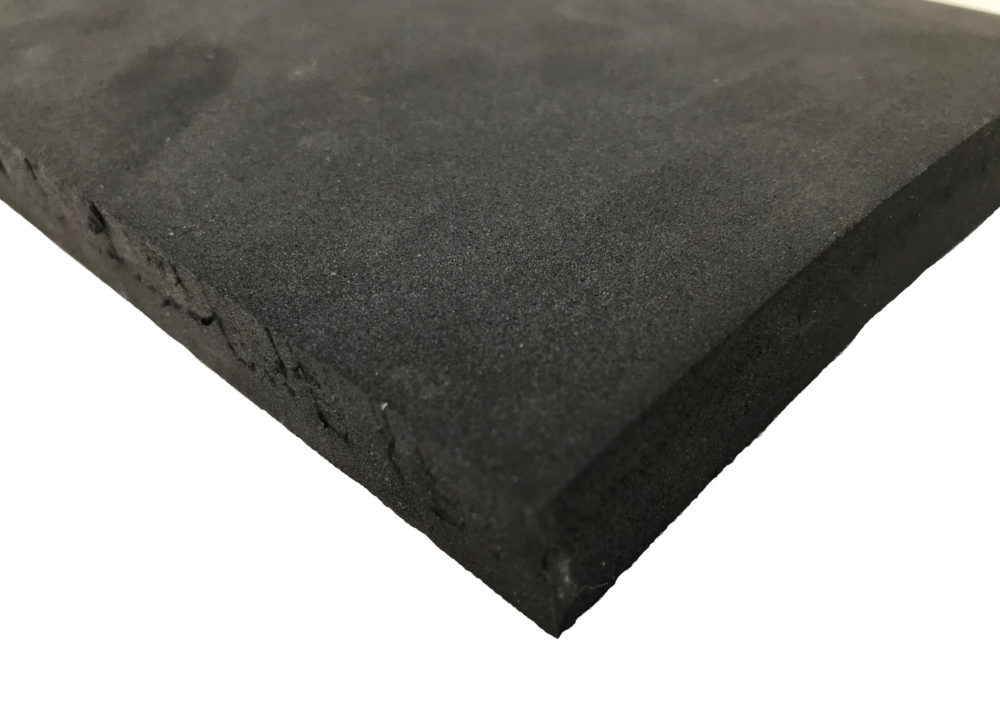

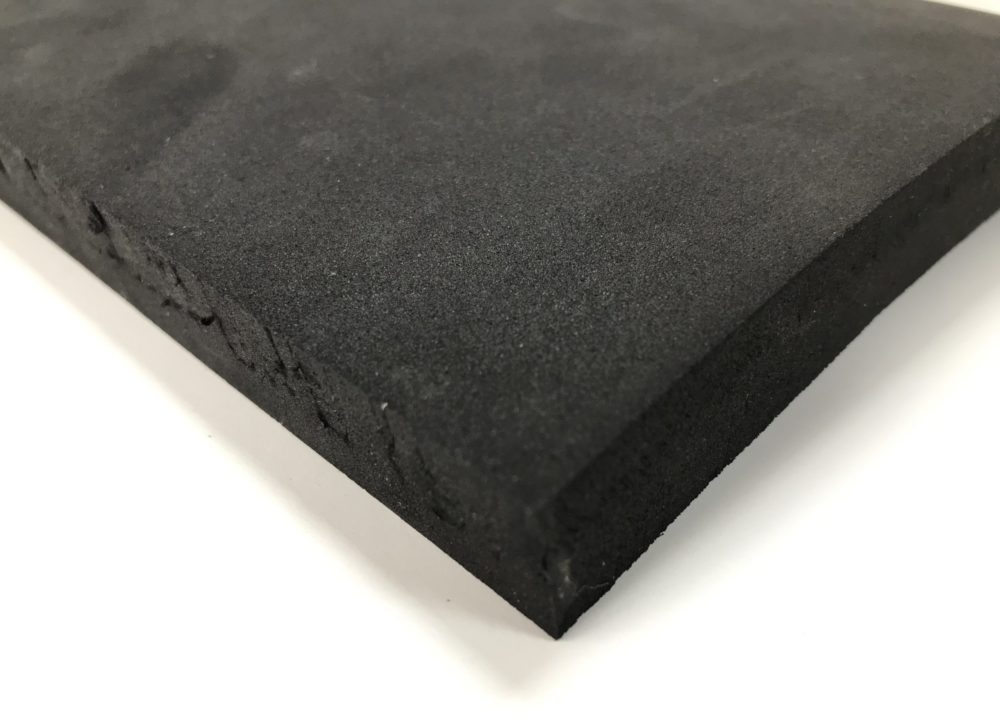

EPDM / Neoprene Closed Cell Foam

ER40 EPDM/CR Closed Cell Foam is available in rolls or sheets and is an excellent sealing material.

N.B. All Metroseal sheeting can be supplied plain or with self adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@metroseal.co.uk

  • Material Profile: see below
  • Thickness: 0.5mm to 50mm
  • Sheet Size: 1.0m wide in 10m rolls
  • Finish: Cell finish
  • Cutting: Standard press-tools

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
1mm x 1000mm x 10m Cell
1.5mm x 1000mm x 10m Cell
2mm x 1000mm x 10m Cell
4mm x 1000mm x 10m Cell
5mm x 1000mm x 10m Cell
6mm x 1000mm x 10m Cell
8mm x 1000mm x 10m Cell
10mm x 1000mm x 10m Cell
12mm x 1000mm x 10m Cell
15mm x 1000mm x 10m Cell
19mm x 1000mm x 10m Cell
25mm x 1000mm x 10m Cell
Specifications CompoundValues [typical]
Colour: Black
Compound: EPDM/CR
Density [specific gravity] Kg/m³: 120
Tensile Strength PSI Min: 120
Elongation At Break % Min: 150
ASTM D1056 Specification [ or other ]: 2A2, RE42, RE42E1
Minimum Temperature: -40°C
Maximum temperature: +110°C
