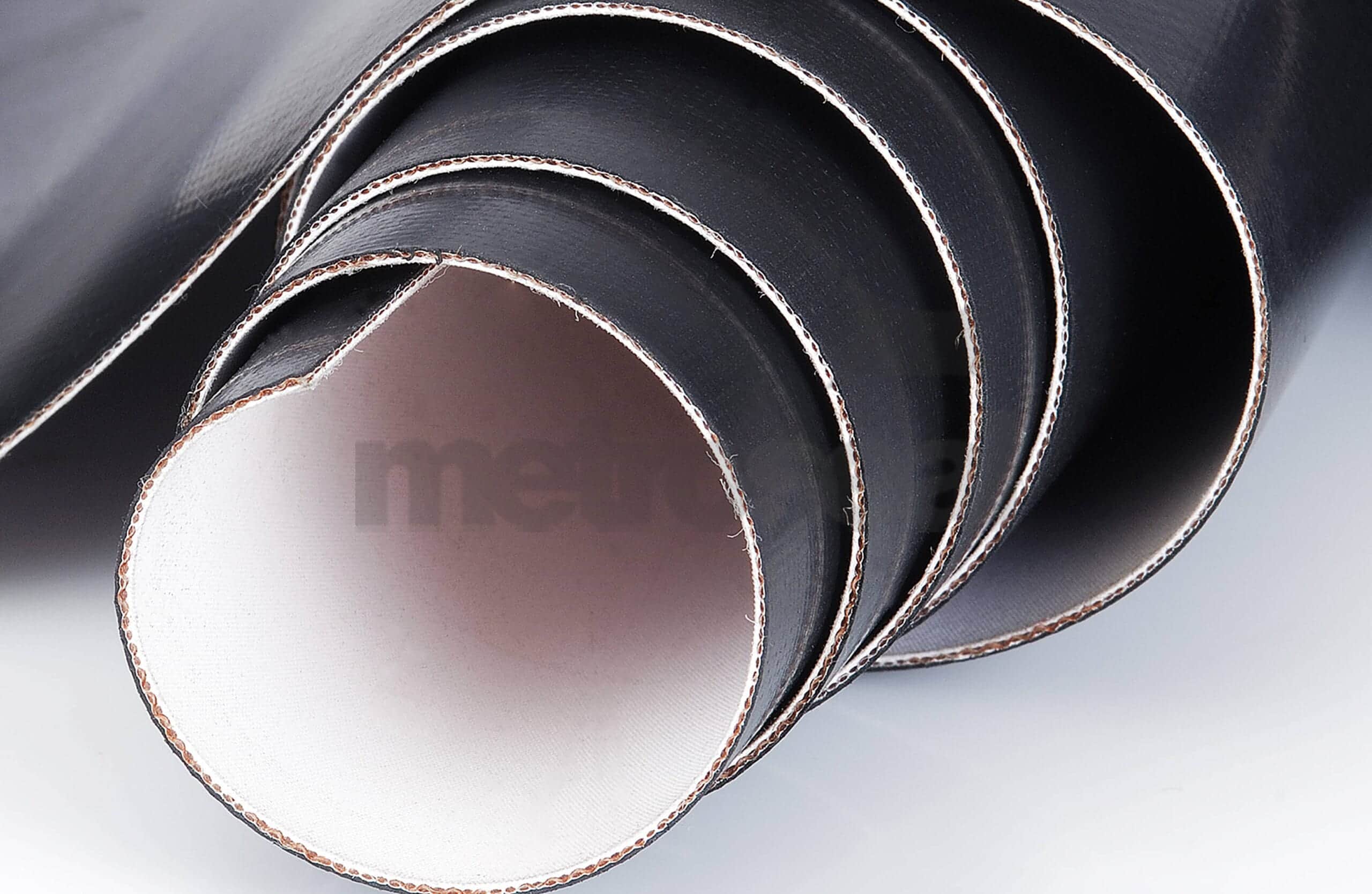

Diaphragm Fabric

SKU: MCF-Diaphragm

Roll Size: 10m

This product is available for bespoke manufacturing, please choose an option below:

Select Options

SPECIFICATION
Insertion Fabric	Nylon 66 Fabric
Polymer	Nitrile (NBR) / Nitrile (NBR)
Colour	Green / Green
Breaking Strength	Warp- 300 kgs, Weft- 300 kgs, Warp- 660 lbs, Weft- 660 lbs
Min. Thickness	0.75 mm ± 0.05 mm, 0.03 inch ± 0.002”
Width Available	1.0 Mtr (39.37”) to 2.0 Mtr (78.74”)
Coated Fabric Weight	900 gsm (± 5%), 26.46 oz/yd2 (± 5%)
