Item Code: SM250

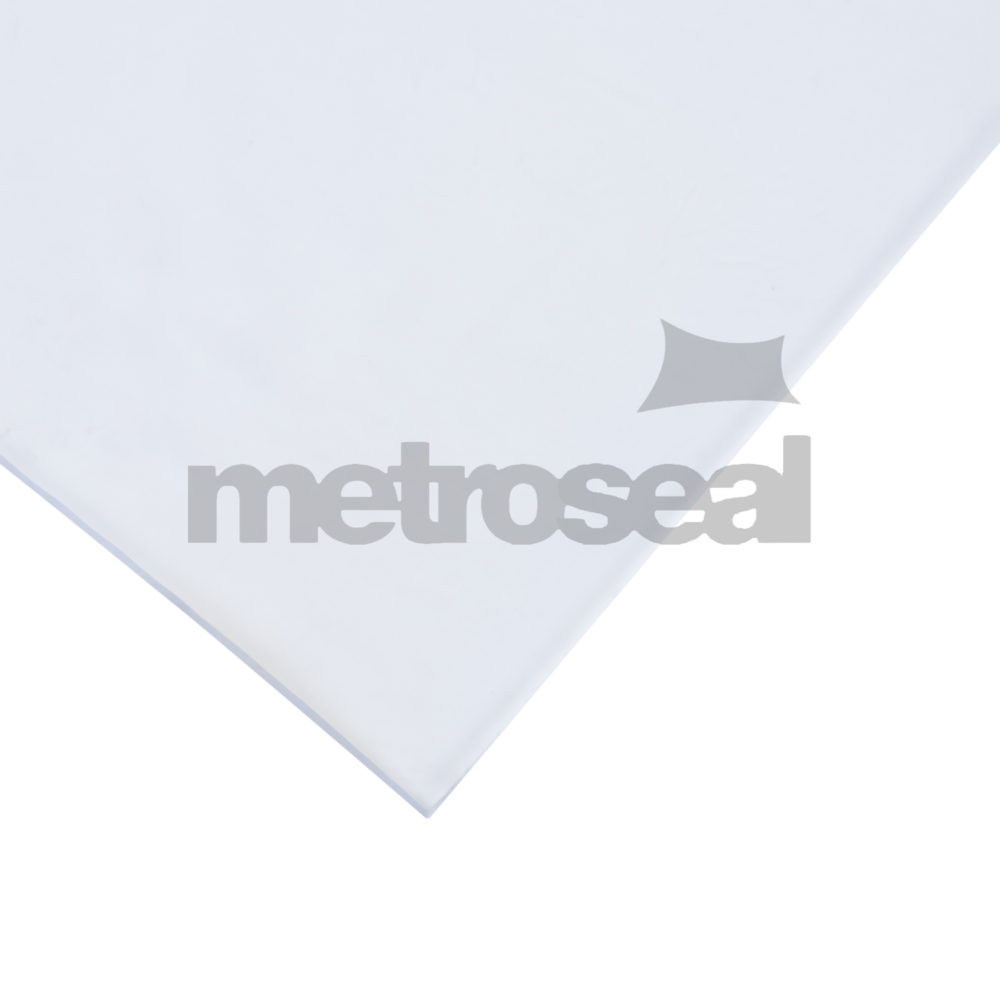

Clear PVC in Rolls

SM250 Clear PVC in Rolls,

Available in roll or pre cut widths : 200mm, 300mm 400mm

  • Material Profile: see below
  • Thickness: 1mm to 6mm
  • Sheet Size: Various. available on application
  • Finish: Smooth finish
  • Cutting: Standard press-tools

Technical Data

Stock Roll Sizes [m x m x mm]Surface FinishWeight [kg/M2]
1mm 1.70
1.5mm 2.55
2mm 3.40
3mm 5.10
4mm 6.80
5mm 8.50
6mm 10.20
Specifications CompoundValues [typical]
Colour: Clear
Compound:: PVC
Density [Speceific gravity] Kg/m³: 1.25
Hardness [Degrees Shore A]: 75
Tensile Strength (Kg/cm2): 100
Elongation at break: NA
Minimum Temperature: -20°C
Maximum Temperature: +100°C
Abrasion resistance [mm3]: N/A
Oil resistance ( Rating): Good
