Checker Plate Rubber Mats Single & Five Bar

SKU: SM545
Roll Size: 10m

This product is available for bespoke manufacturing, please choose an option below:

Select Options

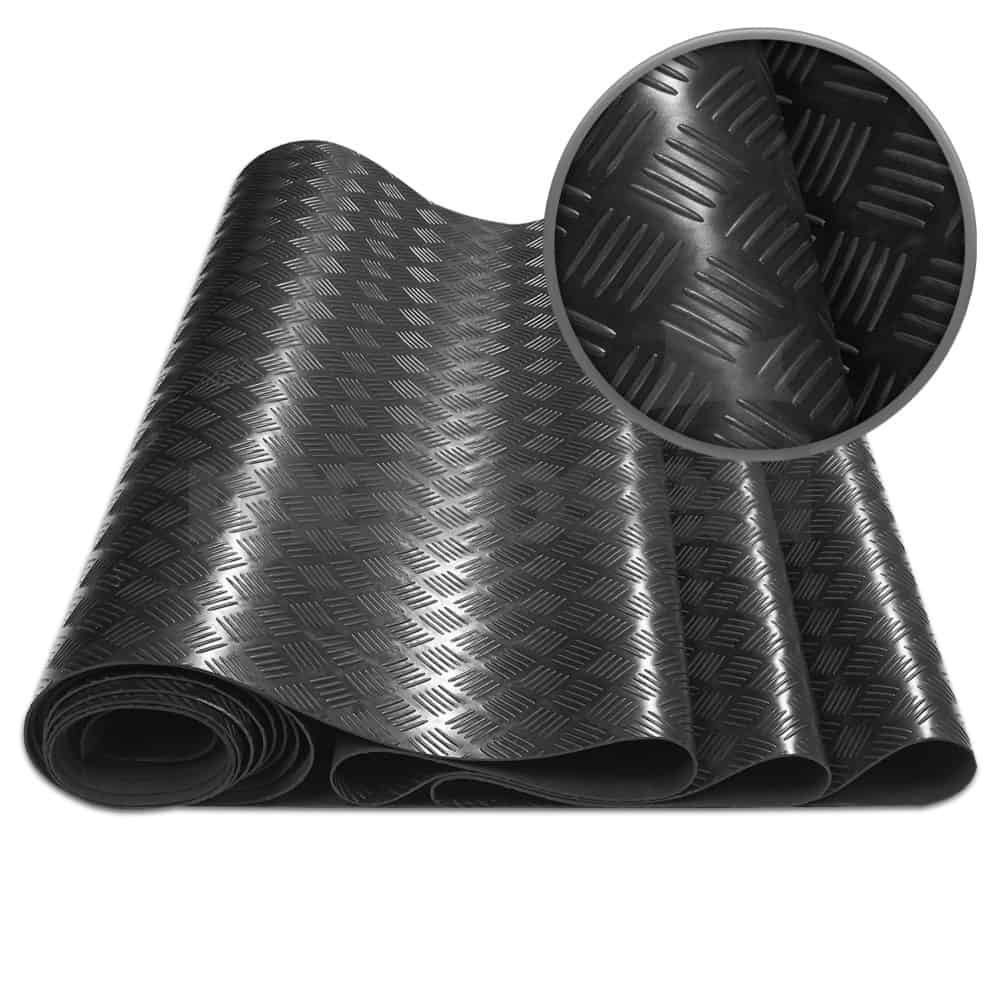

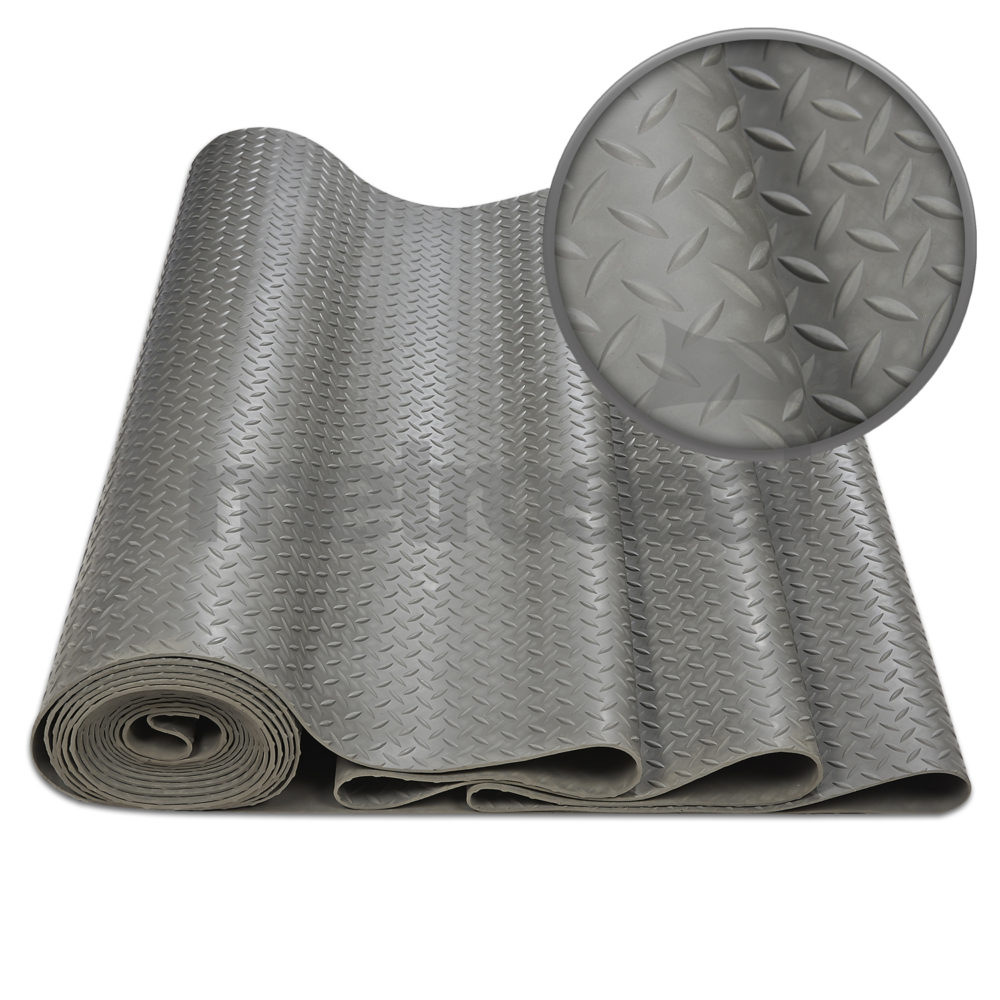

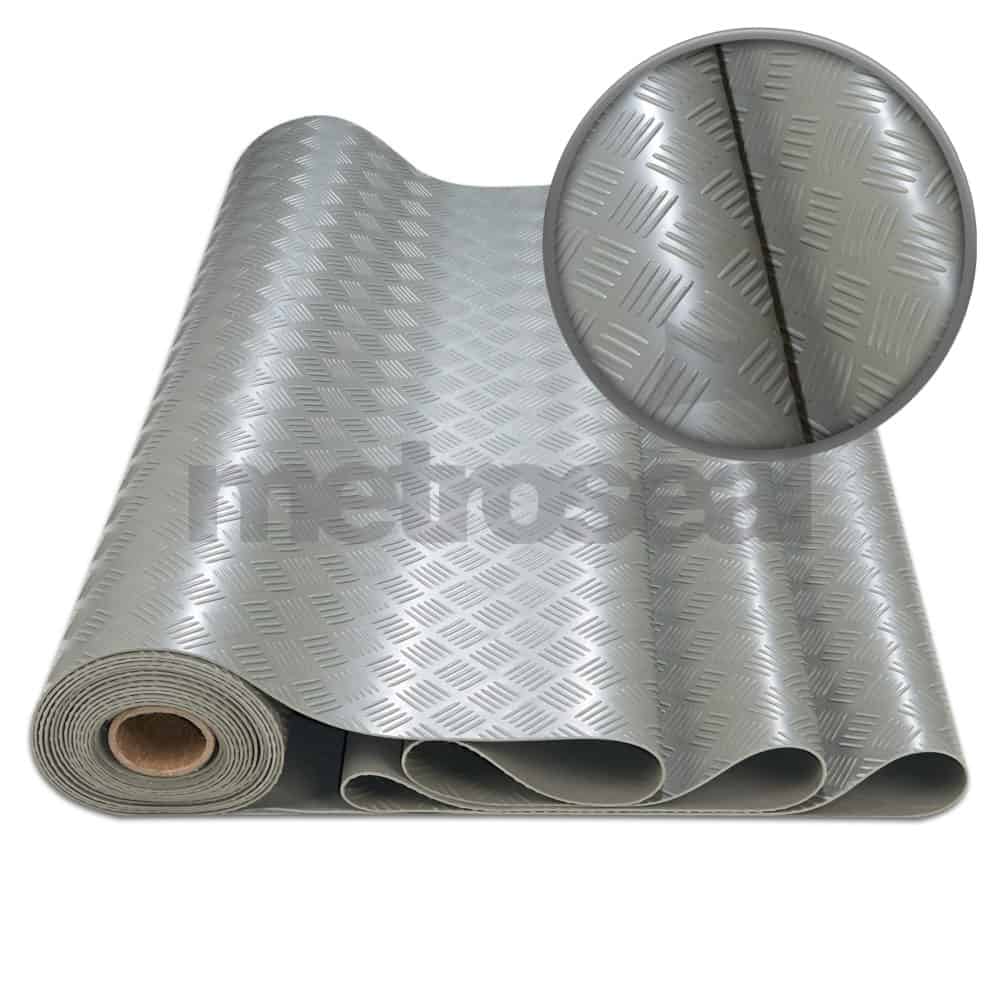

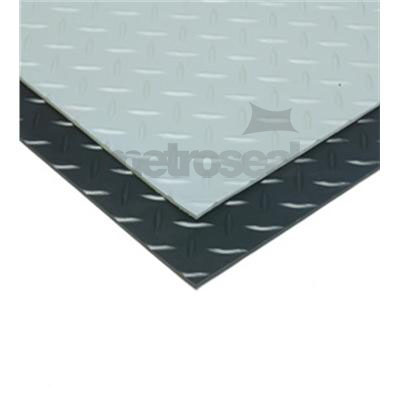

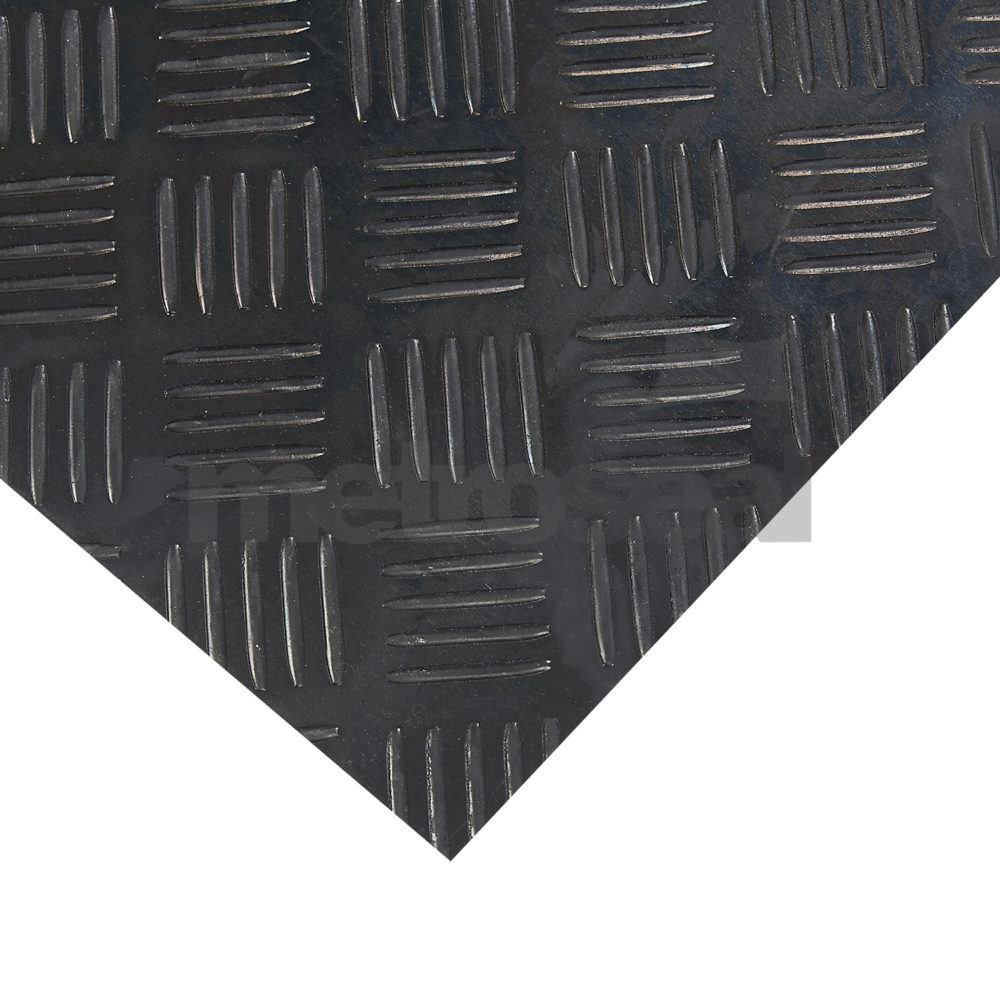

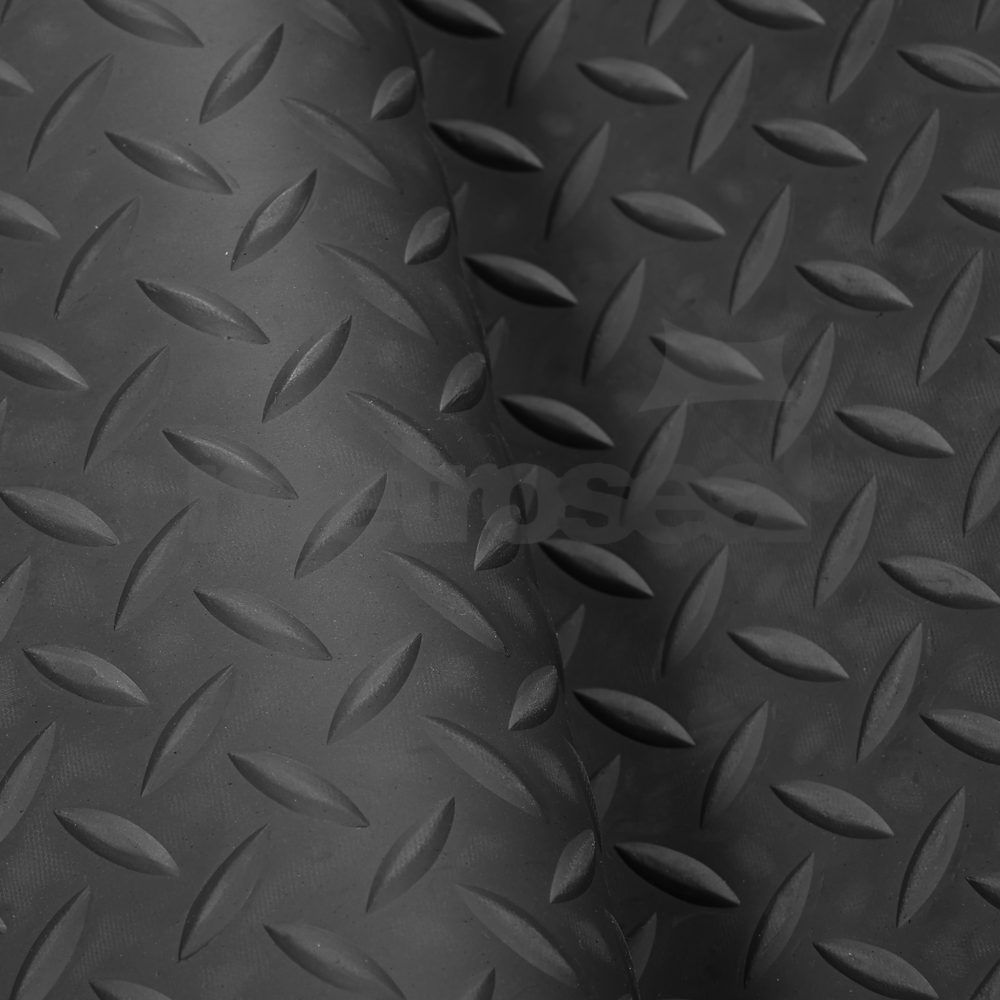

SM545 Checker Plate Rubber Matting Single & Five Bar is a general purpose rubber matting with a ‘Checker Plate’ pattern design on one side and a cloth impression pattern on the reverse. Available in two standard thicknesses in Black and Grey 3mm and 4.5mm and in Blue and Green at 3mm only. Ideally suited for walkways, tread mats, runners and general purpose industrial applications where a multi-directional tread pattern is required.

  • Neat, attractive pattern
  • Easily cut to size & shape
  • Multi-direction tread
  • Low maintenance
  • Non-slip when wet
  • Cut lengths to order
  • Slip Resistance: 77.9 N

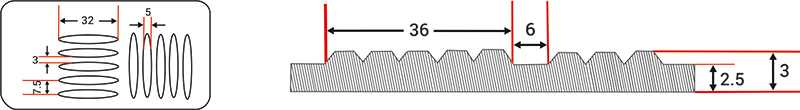

Checker Plate Rubber Matting Single & Five Bar Diagram



This grade can be produced in varying width, length and thickness formats and in a variety of colours to special order. These would be subject to minimum batch run quantities, usually 500 M2 per size/colour.

STOCK ROLL SIZES [M X M X MM]

WEIGHT [KG/M2]

Single Bar – 545-1 4.50
10m x 1.2m x 3.0mm Black 6.75
10m x 1.2m x 3.0mm Black 4.50
10m x 1.2m x 4.5mm Grey – RAL 7012 6.75
Five Bar – 545-5
10m x 1.2m x 3.0mm Black 4.50
10m x 1.0m x 3.0mm Grey – RAL 7012 4.50
10m x 1.2m x 3.0mm Blue 4.50
10m x 1.0m x 3.0mm Green 4.50
10m x 1.2m x 4.5mm Black 6.75
10m x 1.2m x 4.5mm Grey – RAL 7012 6.75



SPECIFICATIONS COMPOUND

VALUES [TYPICAL]

Colour Black/Grey/Blue/Green
Compound SBR/NR
Hardness [Shore A] 70°
Density [SG] 1.5
Tensile Strength: [MPA] 3.0
Elongation [min] 150%
Abrasion Resistance [mm³] 250
Minimum Temperature -20°C
Maximum Temperature +70°C
Slip Resistance 77.9 N
