Home / Rubber Matting / Equine & Agriculture / Broad Ribbed Rubber Matting

Do you need help or advice? Call 01702 548800

Item Code: SM540

Broad Ribbed Rubber Matting

SM540 broad ribbed Rubber Matting is available in economy and premium grades, the premium grade is also available with a 1 ply insertion. An Oil resistant grade can also be available to special order.

SM540E is an Economy Grade with a shallow broad rib matting with a  broad ribbed pattern design on one side and a cloth impression pattern on the reverse. Available in Black in 3mm,5mm and 6mm thick.

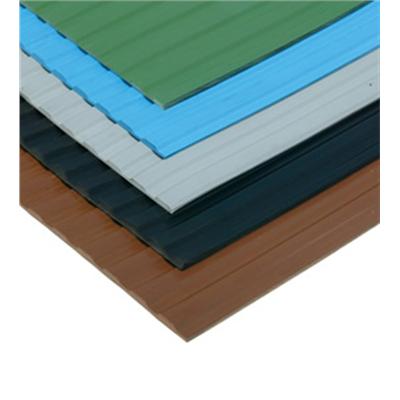

SM540 is the Premium Grade with a deeper ribbed pattern on one side and a cloth impression on the reverse. Available in five thickness’ in black: 4mm, 5mm, 6mm, 8mm, 9.5mm and in colours grey, green, brown and blue at 5mm thickness only.

SM540P 1 Ply Fabric Reinforced Premium Grade Broad Ribbed Runner Matting is available in 10m x 1.8m Rolls in 6mm and 10mm ThickAll the above grades are Ideally suited for walkways, tread mats, runners and general purpose industrial applications where a heavy duty mat is required.

  • Neat, attractive pattern
  • Easily cut to size & shape
  • High relief direction tread
  • Low maintenance
  • Non slip when wet
  • Cut lengths to order

This grade can be produced in varying width, length and thickness formats and in a variety of colours to special order. These would be subject to minimum batch run quantities, usually 500 M2 per size/colour

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
Economy Grade
10m x 1.2m x 3.0mm 3.75
10m x 1.2m x 5.0mm 6.25
10m x 1.2m x 6.0mm 7.50
Premium Grade
10m x 1.0m x 4.0mm 5.0
10m x 1.2m x 4.0mm 5.0
10m x 1.0m x 5.0mm 6.25
10m x 1.2m x 5.0mm 6.25
10m x 1.0m x 6.0mm 7.5
10m x 1.2m x 6.0mm 7.5
10m x 1.2m x 8.0mm 10.0
10m x 1.2m x 9.5mm 11.85
10m x 1.2m x 5.0m 5.9
1 Ply Fabric Reinforced
10m x 1.8m x 6.0mm 7.5
10m x 1.8m x 10mm 12.5
Specifications CompoundValues [typical]
Colour: Black/colours
Compound:: SBR/NR
Hardness [Shore A]:: 70°
Density (S.G.): 1.50
Tensile Strength (Kg/cm2): 30
Elongation at break (%): 200
Abrasion Resistance [mm³]: 300
Temp Resistance (◦C): -30/+70
