Item Code: SM591

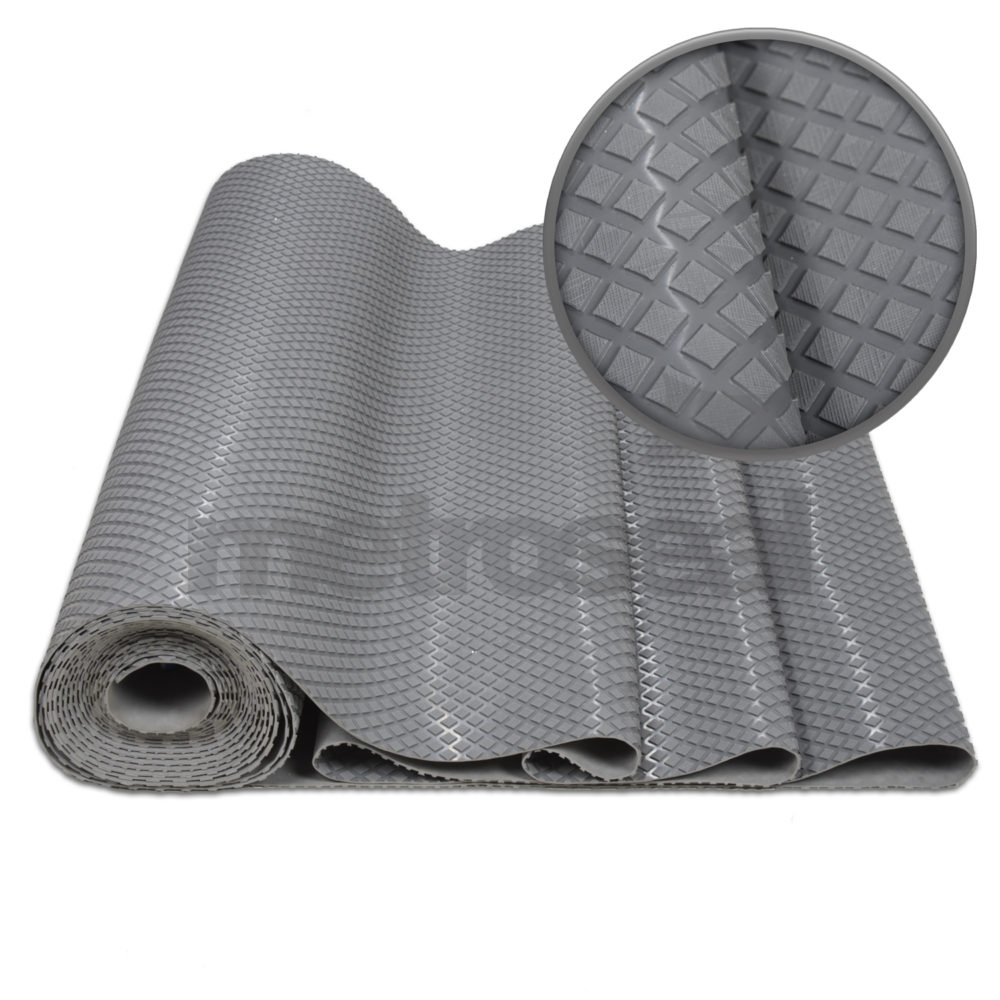

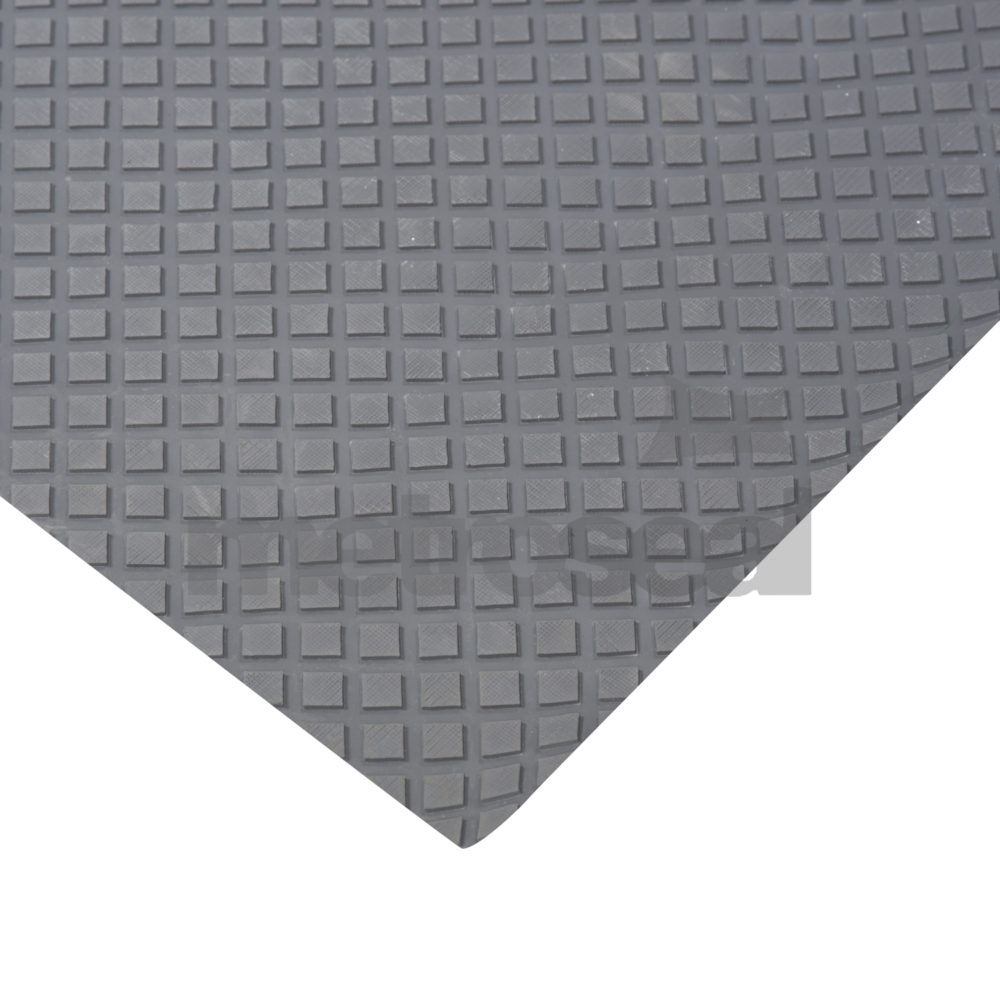

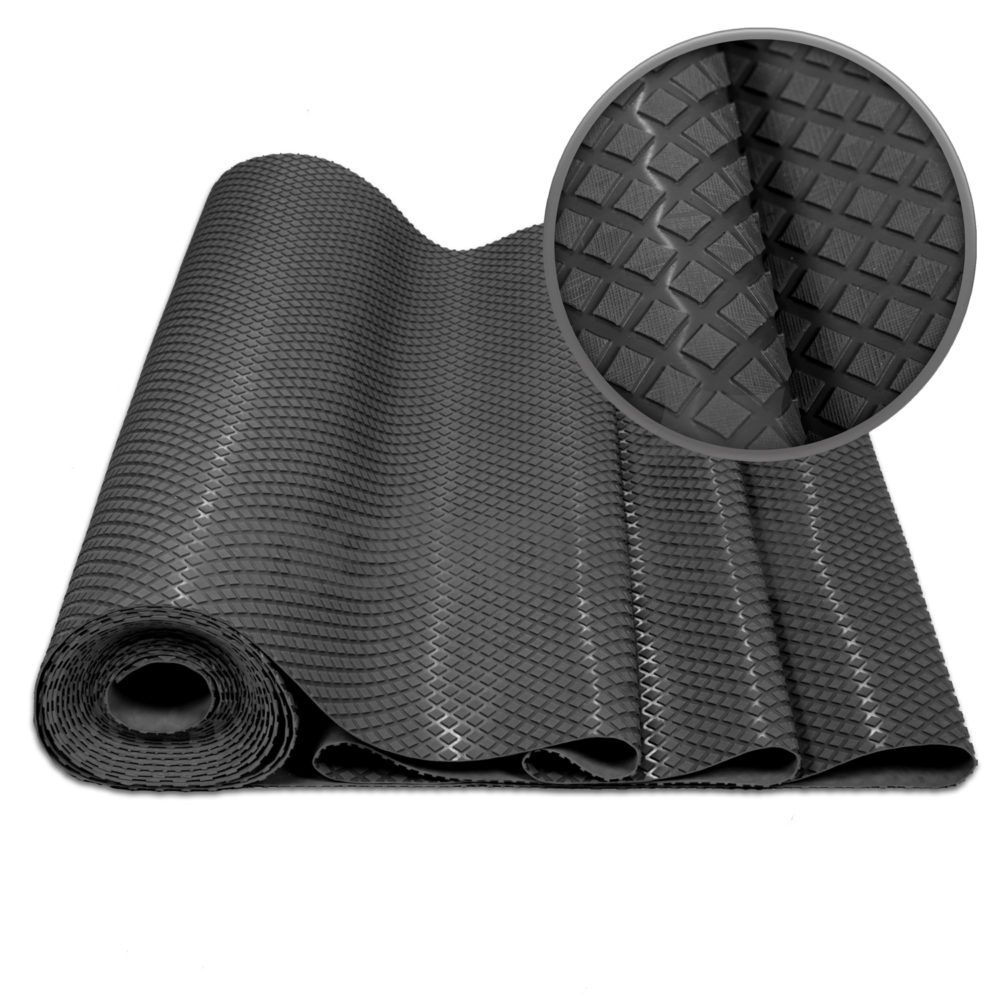

Rhombus Rubber Matting

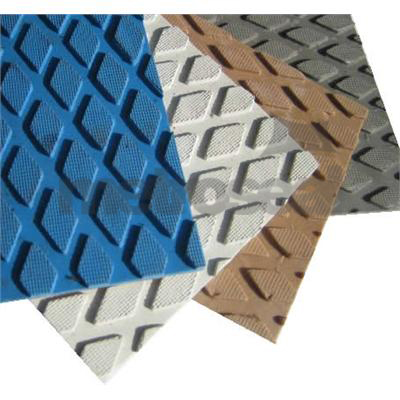

SM591 ‘Rhombus’ Rubber Matting is a High Quality, virtually non-slip rubber matting, which is available in a choice of five standard colours, Black, Blue, Grey, Fawn or White in the standard SBR/NR compound or in Black or Grey in the more weather resistant EPDM/SBR Compound.

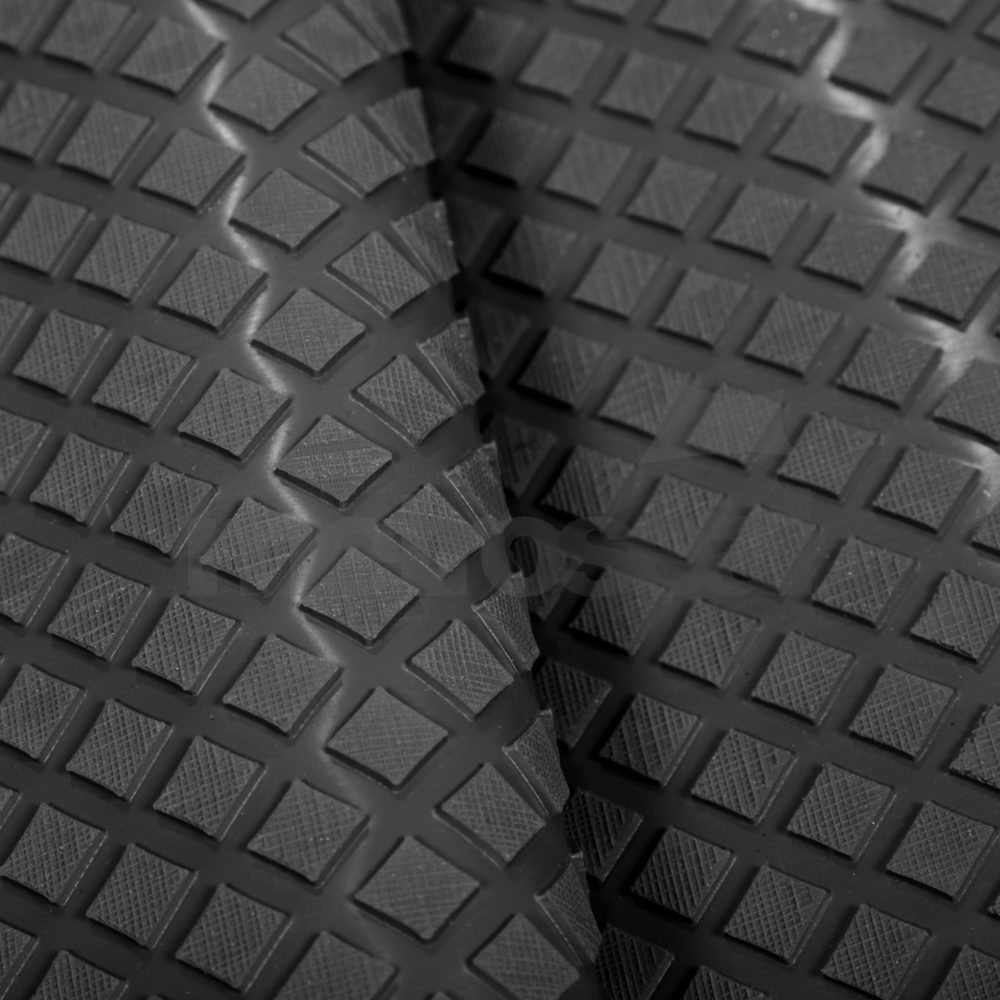

It has a unique and attractive ‘Rhombus’ (diamond) pattern, each diamond having a slip resistant embossed pattern on the surface. This matting is ideal for boat decks, quaysides, walkways and any steep inclined areas.

  • Premium Grade rubber matting
  • Unique, safe non-slip Rhombus pattern surface
  • Excellent anti-slip characteristics for applications
  • Involving excessive amounts of water and liquids
  • Ideal for steep, inclined areas
  • Attractive range of colours

This grade can be produced in varying width, length and thickness formats and in a variety of colours (RAL matched if needed) to special order. These would be subject to minimum batch run quantities, usually 100 M2 per size/colour

Technical Data

Stock Roll Sizes [m x m x mm] Weight [kg/M2]
10m x 1m x 3.5mm 4.2
EPDM Black & Grey only
10m x 1m x 3.5mm 4.2
Specifications Compound Values [typical]
Colour:: Black/Grey/Blue/Fawn/White
Compound:: SBR/NR and EPDM/SBR
Hardness Shore (Term): 70°
Density (S.G.): 1.50
Tensile Strength (Kg/cm2): 30
Elongation at break (%): 200
Abrasion Resistance [mm³]: 200
Temp Resistance (◦C): -30/+70
Slip Resistance (Term):
Polymer Content (%): NA
