Home / Rubber Sheeting / FDA Food Approved Rubber Sheeting / Red Silicone FDA and EU1935 Approved 60° shore

Approved to: FDA 21 CFR No: 177 – 2600, EU1935/2004 regulations and Class V1 Compliant.

Item Code: SM14004

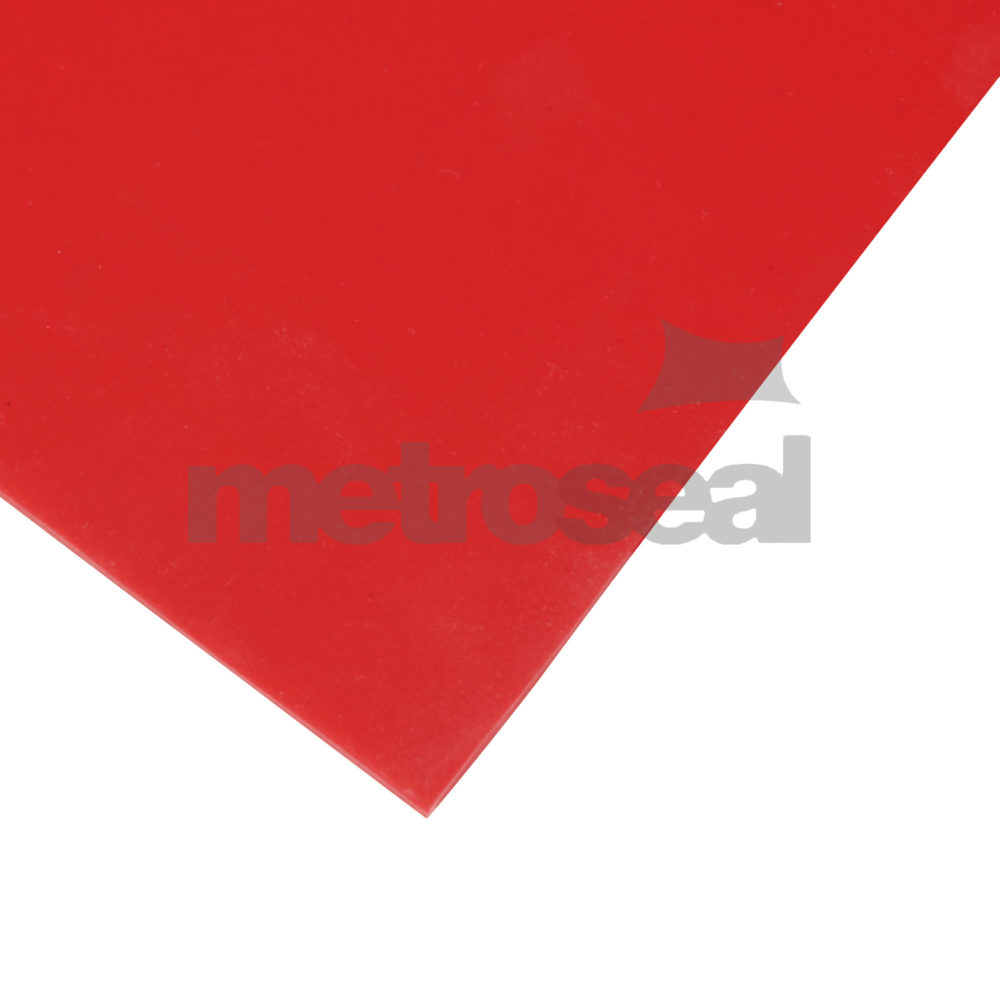

Red Silicone FDA and EU1935 Approved 60° shore

Approved to: FDA 21 CFR No: 177 – 2600, EU1935/2004 regulations and Class V1 Compliant.

FDA, CE, ROHS, Reach, TUV

SM14004 RED Silicone Food & Drink Grade 60° shore is high quality sheeting for demanding applications with excellent heat and flame resistance together with very good ageing and weathering characteristics and suitable for use with food and drink. Meets FDA 21 CFR No: 177 – 2600 and EU1935/2004 regulations and Class V1 Compliant.

N.B. Metroseal Sheeting can be supplied plain or with self adhesive backed tape (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please email your enquiry details to sales@metroseal.co.uk

  • Material Profile: See Below
  • Thickness: 0.5mm to 50mm
  • Sheet Size: 1.2m wide in 10m rolls
  • Finish: Smooth finish
  • Cutting: Standard press-tools

This Product is REACH, RoHS, PAH and CE Compliant

Other grades, colours and finishes are available – subject to minimum batch quantities

PROPERTIES

TEST METHOD

VALUES FPS UNITS

TEST METHOD

VALUES METRIC UNITS

SPECIFIC GRAVITY

ASTM D297

1.20

DIN 53508

1.20

HARDNESS

ASTM D2240

60 ± 5 SH A

DIN 53505

60 ± 5 SH A

TENSILE STRENGTH ( MIN )

ASTM D412

712 PSI

DIN 53504

60 KG/CM2

ELONGATION AT BREAK ( MIN )

ASTM D412

250%

DIN 53504

250%

COMPRESSION SET (70º C/24 HRS/25% SET) (MAX)

ASTM D395 METHOD B

40%

DIN 53517

40%

TEAR RESISTANCE ( ANGULAR ) MIN

ASTM D624

112 LBS/INCH

DIN 53515

20 KG/CM

POLYMER CONTENT:



100



100

CHANGE IN PROPERTIES









HEAT AGEING ( 72 HRS. AT 100 ºC )

ASTM D573







— HARDNESS (PTS)



+3 (MAX)



+3 (MAX)

— TENSILE STRENGTH (%)



+ 5 / – 5



+ 5 / – 5

— ELONGATION AT BREAK (%)



+ 5 / – 5



+ 5 / – 5

VOLUME SWELL : AT 70º C FOR 72 HRS/IN

ASTM D 471







ASTM OIL NO.1



+ 5%



+ 5%

ASTN OIL NO.2



+ 7%



+ 7%

ASTM OIL NO.3



+ 25%



+ 25%

CHEMICAL RESISTANCE









— OZONE

ASTM D 1149

EXCELLENT



EXCELLENT

— DILUTE ACIDS AND BASES



EXCELLENT



EXCELLENT

— CONCENTRATED ACIDS AND BASES



EXCELLENT



EXCELLENT

— OILS



GOOD



GOOD

—SOLVENTS



FAIR



FAIR

TEMPERATURE RANGE



-90 º TO + 200º C



-90 º TO + 200º C

COLOUR



RED



RED



US-FDA test as per 21.CFR.177.2600

Sr. No. Net Chloroform Soluble Extractives using  Result Unit Limits as per Standard Test Method
Total Extractives at Reflux Temperatures for 7 hrs. Using
1 Distilled Water 2.8 mg/inch2 20.0 As per USFDA 21.CFR.176.2600
2 n-Hexane 22.4 175.0
Total Extractives at Reflux Temperatures for 2 hrs. Using
3 Distilled Water 0.8 mg/inch2 1.0
4 n-Hexane 0.8 4.0

Note : Detection Limit for the method is 0.5 mg/inch2.
