Item Code: SM597

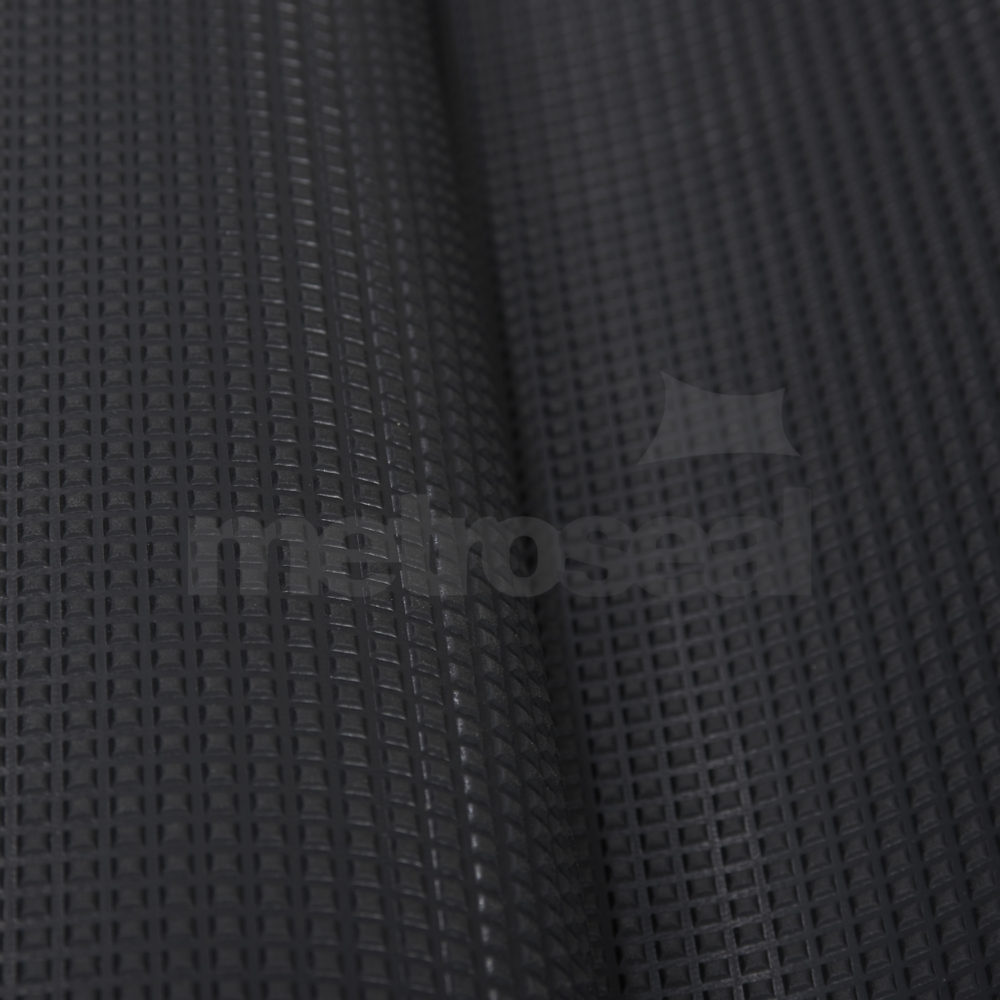

Pyramid Plate Non Slip Rubber Runner Matting

SM597 ‘Pyramid’ Plate Rubber Runner Matting is a general purpose rubber matting with a high relief ‘Pyramid’ pattern design on one side and a cloth impression pattern on the reverse. Available in 3mm and 4mm medium and 6mm heavy duty thickness’ . Ideally suited for walkways, tread mats, runners and general purpose industrial applications where a multi directional tread pattern is required.

  • Neat, attractive pattern
  • Easily cut to size & shape
  • Multi direction tread
  • Low maintenance
  • Non slip when wet
  • Cut lengths to order

This grade can be produced in varying width, length and thickness formats and in a variety of colours to special order. These would be subject to minimum batch run quantities, usually 500 M2 per size/colour

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
10m x 1.0m x 3.0mm 4.2
10m x 1.2m x 3.0mm 4.2
10m x 1.0m x 4.0mm 5.6
10m x 1.2m x 4.0mm 5.6
10m x 1.0m x 6.0mm 8.4
10m x 1.2m x 6.0mm 8.4
Specifications CompoundValues [typical]
Colour:: Black
Compound:: NR/SBR
Hardness Shore (Term): 70°
Density (S.G.): 1.50
Tensile Strength (Kg/cm2): 30
Elongation at break (%): 200
Abrasion Resistance [mm³]: 250
Temp Resistance (◦C): -30/+70
Slip Resistance (Term):
Polymer Content (%): NA
