METROLOAD Fibre Reinforced Load Bearing Pads

METROLOAD Fibre Reinforced Load Bearing Pads are manufactured using recycled high-quality tyres resulting in an economical and environmentally friendly product. The fully vulcanised rubber has inclusion of majorly dispersed fibres creating a unique compound that exhibits outstanding strength and durability. METROLOAD can withstand harsh conditions like exposure to ozone and low temperatures. This product is commonly used in construction applications, prestress concrete bridges, buildings, machinery and equipment foundations.



USES

Bearing pads have a range of applications and are commonly used as handrail bearing pads, lighting standard pad seats, vibration isolation railway tie pads and in bridge bearing masonry along with other applications. If you are unsure whether this product is right for you, feel free to give us a call on  01702 548800 and discuss your requirements with one of our many experts.



MATERIAL COMPOSITION

The material is reinforced with synthetic fibre during the construction process of the sheet, increasing internal strength considerably. This unique process adds enhanced levels of tensile and compression strength, durability, tear resistance, stiffness and superior weather and ozone resistance. This could not be achieved without the fibre reinforcement.

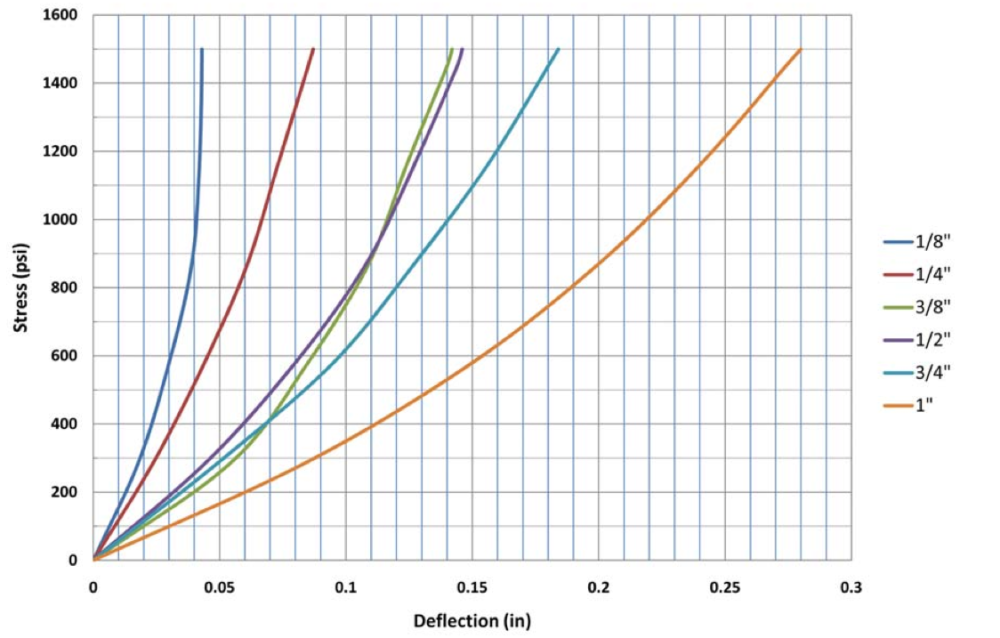

Note: The colours of each line represent thicknesses labelled in the key to the right of the graph.

Physical Properties

Test Method

Specification of METROLOAD Bearing Pads

Tensile Strength, Min

ASTM D412

750 PSI

Tear Strength, Min

ASTM D624

150 PI

Elongation, %, Min

ASTM D412

15

Hardness, Shore A

ASTM D2240

80 ± 5

Density (Relative)



1.23

Minimum Temperature

ASTM D2137

-25°C

Maximum Temperature

ASTM D2137

+120°C

Coefficient of Friction

ASTM D1894

>0.8

Maximum Load (PSI)



1000

Abrasion Resistance



120mm3
