Item Code: SM548

Griptop Horse and Transporter Ramp Matting in Rolls

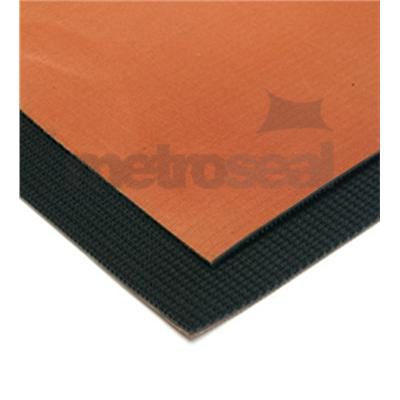

SM548 Griptop Horse and Transporter Ramp Matting in Rolls is the ultimate non slip matting for horse box, cattle and animal transporter ramps. Used where animal safety is of prime importance it has a unique high relief rough ‘Griptop’ rubber surface and is reinforced with a heavy duty EP fabric [1ply medium duty, 2 ply heavy duty] on the reverse giving high anti rip / tear qualities. It can also be used in other applications where underfoot safety in wet and inclined areas are in use
All Items Supplied With HD Orange Fabric Back.

  • Excellent non slip characteristics
  • Excellent anti-tear properties
  • Up to 1500mm wide
  • Good durability & resilience
  • Attractive finish and appearance
  • Low maintenance

This grade can be produced in varying width, length and thickness formats to special order. These would be subject to minimum batch run quantities, usually 300 M2 per size/colour

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
1.2m x 50m x 1 ply 4.80
1.2m x 50m x 2 ply 5.20
1.2m x 100m x 1 ply 4.80
1.2m x 100m x 2 ply 5.20
1.5m x 50m x 1 ply 4.80
1.5m x 50m x 2 ply 5.20
1.5m x 100m x 1 ply 4.80
1.5m x 100mv x 2 ply 5.20
Specifications CompoundValues [typical]
Colour: Black
Compound:: SBR/NR
Hardness [Shore A]:: 70°
Density (S.G.): 1.5
Tensile Strength (Kg/cm2): 30
Elongation at break (%): 200
Abrasion Resistance [mm³]: 200
Minimum Temperture: -30°C
Maximum Temperture: +70°C
Slip Resistance (Term): Good
Polymer Content (%): NA
