Item Code: SM667GL

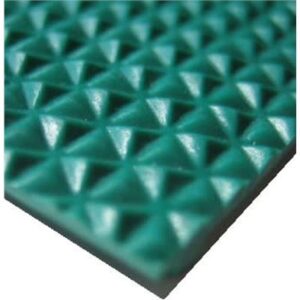

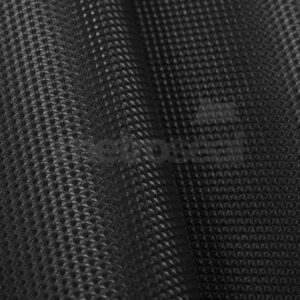

‘Grip Liner’ PVC Membrane Matting

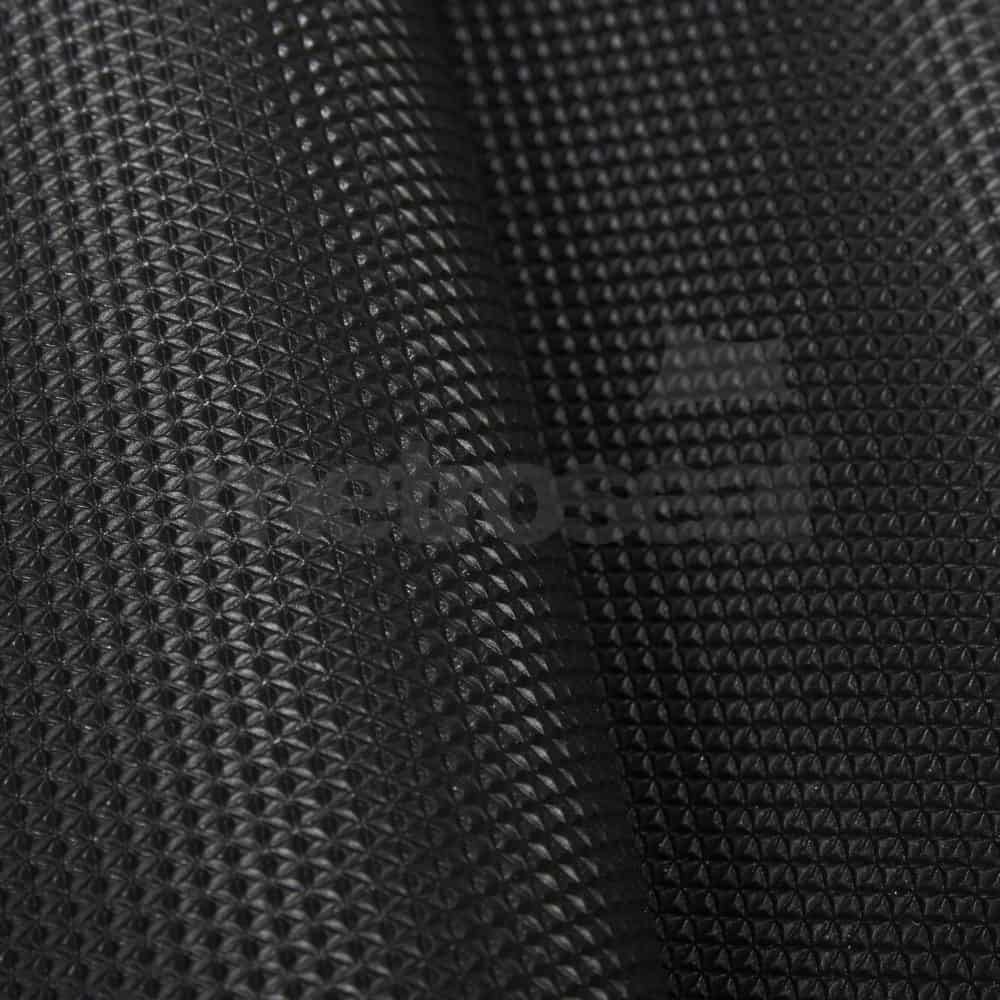

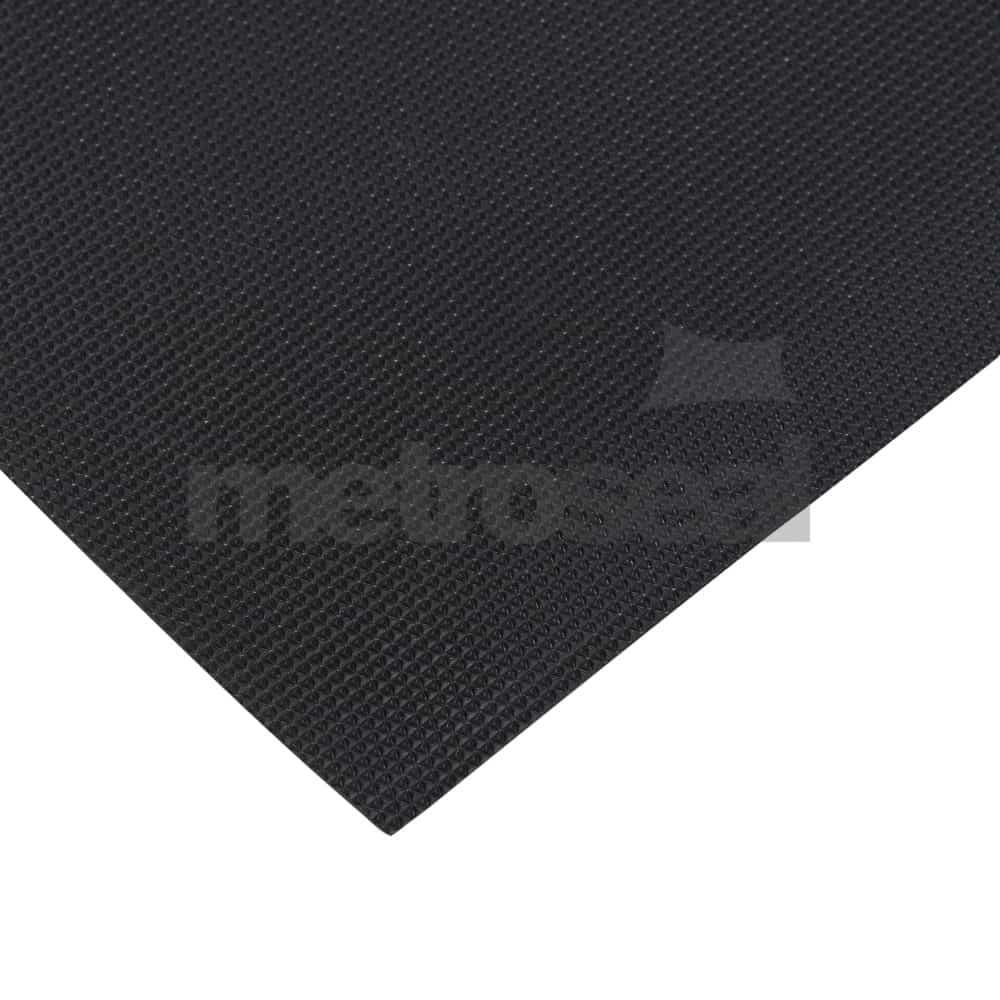

SM667GL ‘Grip Liner’ PVC Membrane Matting is a premium grade PVC membrane matting available in Black, Grey and Green. It has a slip resistant ‘etched’ diamond pattern surface, with a smooth finish on the reverse. It is an ideal material for the following: display, tray, drawer or step facings.

  • Premium grade PVC matting
  • Safe non slip etched diamond pattern surface on one side
  • Plain smooth backing
  • Excellent chemical, oil & grease resistance
  • Clean, hygienic, tough and durable
  • Attractive range of colors

This grade can be produced in varying width, length and thickness formats and in a variety of colours (RAL matched if needed) to special order. These would be subject to minimum batch run quantities, usually 500 M2 per size/colour

Technical Data

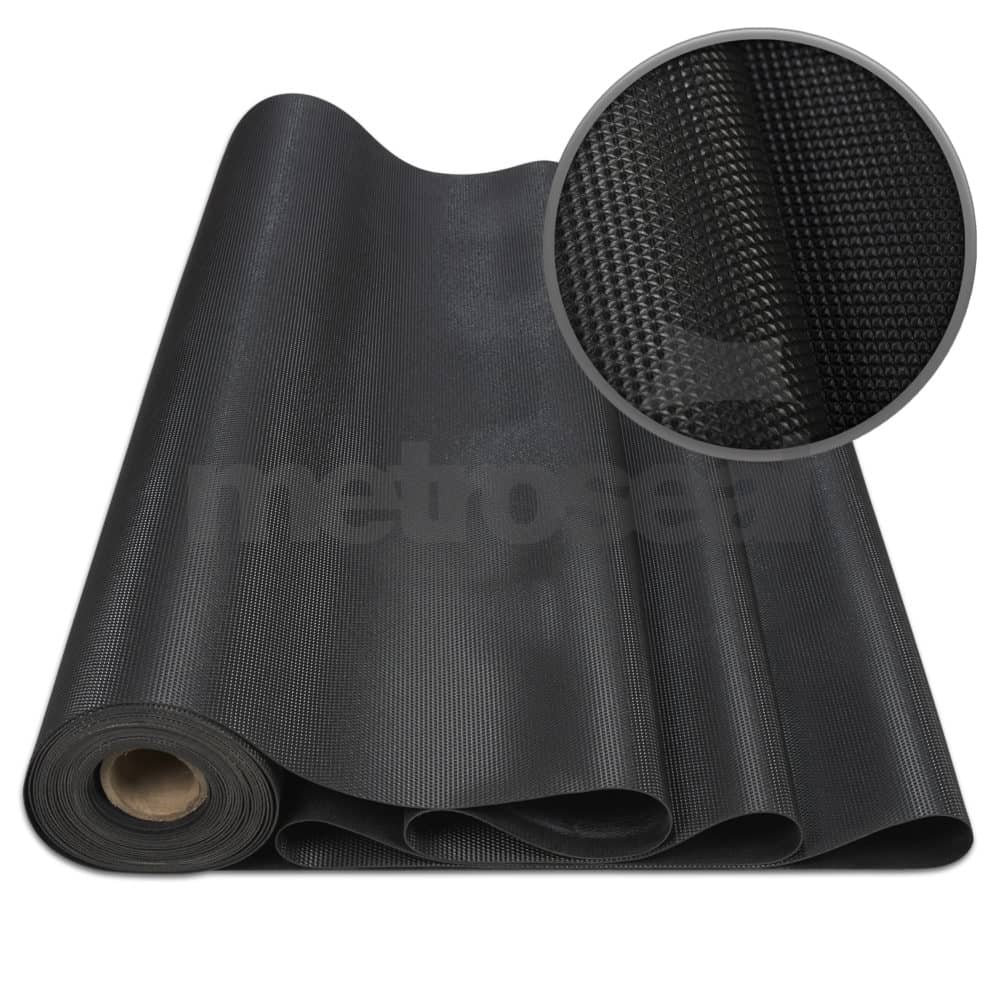

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
15m x 1.2m x 1.5mm 2.0
Specifications CompoundValues [typical]
Colour: Black
Compound:: NA
Hardness [Shore A]:: 75°
Density [SG]:: 1.7
Tensile Strength (Kg/cm2): 80
Elongation at break (%): 200
Abrasion Resistance [mm³]: 150
Minimum Temperture: -20°C
Maximum Temperture: +100°C
Oil resistance ( Rating): Good
