Item Code: SM557-03

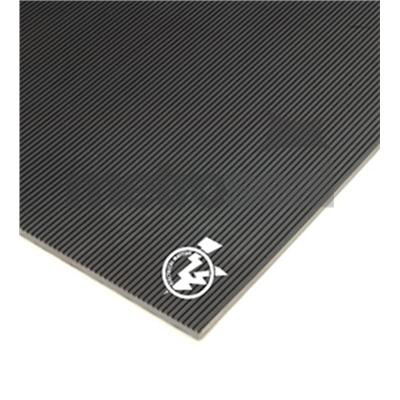

Fine Ribbed Rubber Matting 26,500v to ASTM D178 ANSI JS.7

SM557-03 Fine Ribbed Rubber Matting to ASTM D178 ANSI JS.7 is a high quality ribbed matting with the regulation standard, stamped on the reverse of the roll at 1000mm intervals. Fully certified and tested to. It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse.
Dialectric test voltage: 40,000 volts,
Surface proof tested: 30,000v
maximum safety working voltage of 26,500v
To Class 3 Electrical Resistance – Ozone, Flame & oil Resistant

Conforms to: ASTMD178 Type 2, Section 5
Class ozone Resistant
Class Flame Resistant
Class Oil Resistant

  • Fully tested to specification
  • Health & Safety regulation material
  • Fully traceable supply
  • Regulatory branding on reverse
  • Anti-slip finish
  • Low maintenance

Cut lengths available to order. SM557 can also be supplied to order in colours and flame retardant, low smoke emission grades

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
10m x 0.91m x 10mm 13.00
Specifications CompoundValues [typical]
Colour: Black
Compound:: CR
Hardness Shore 'A' (±5): 70
Density (S.G.): 1.5
Tensile Strength (Kg/cm2): 40
Elongation at break (%): 200
Abrasion Resistance [mm³]: 200
Minimum Temperture: -20°C
Maximum Temperture: +70°C
Test Voltage (See Data): 40kv
Standard: ASTM
