Item Code: SM551

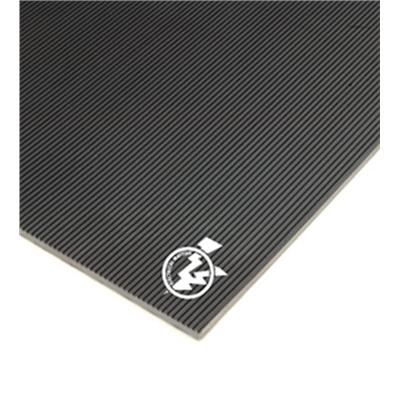

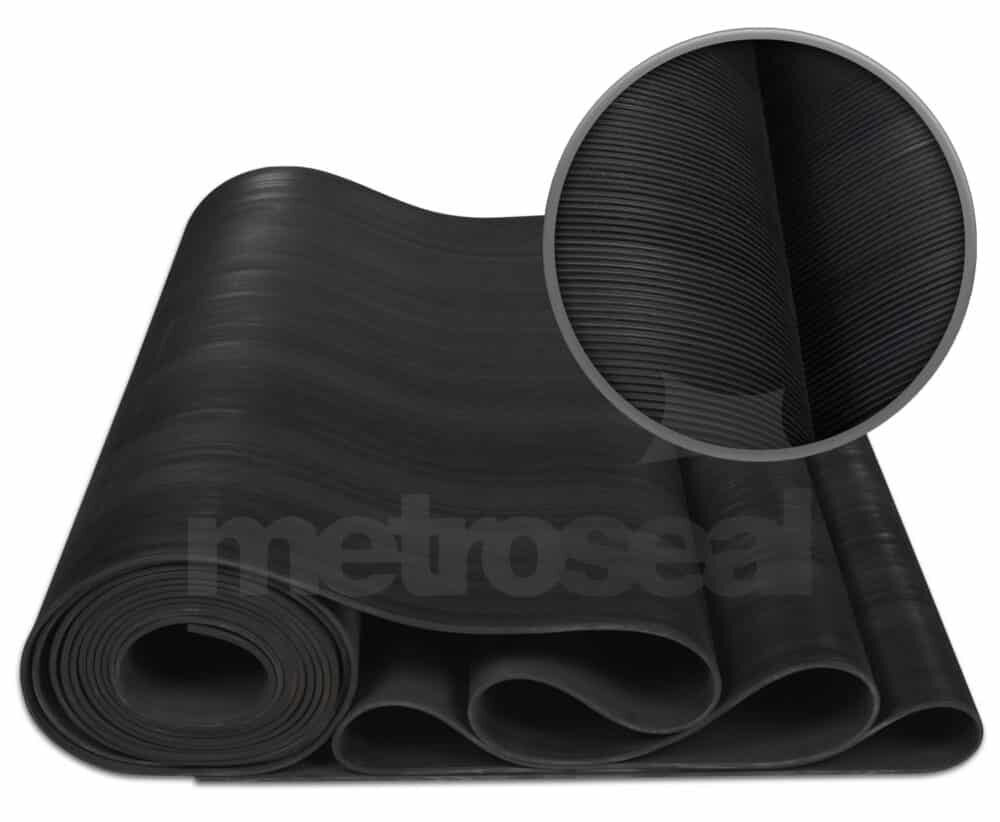

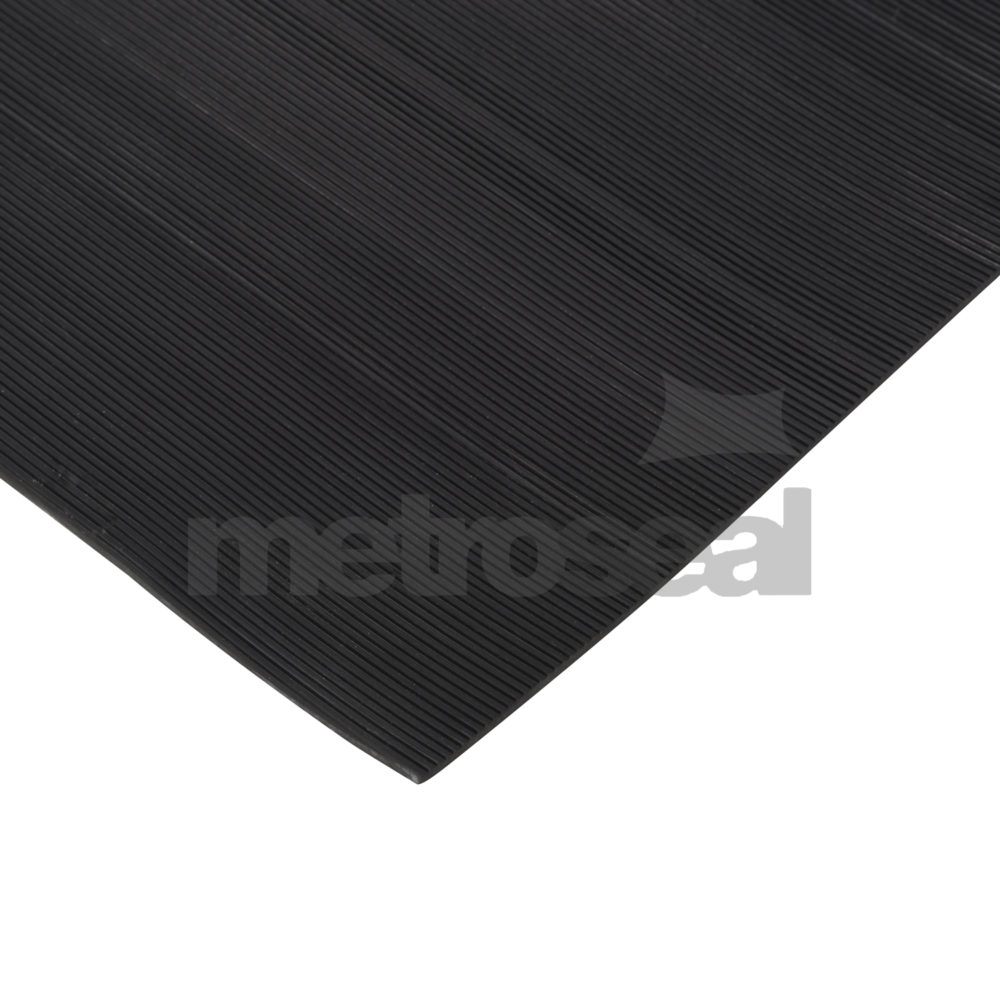

Fine Ribbed Rubber Matting to 11,000v

SM551 Fine Ribbed Rubber Matting to 11,000v is a high quality matting with the regulation standard, stamped on the reverse of the roll at 1000mm intervals. Fully certified and tested to 11,000 volts with a recommended safety working voltage of 450v. It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse.

  • Fully tested to specification
  • Health & Safety regulation material
  • Fully traceable supply

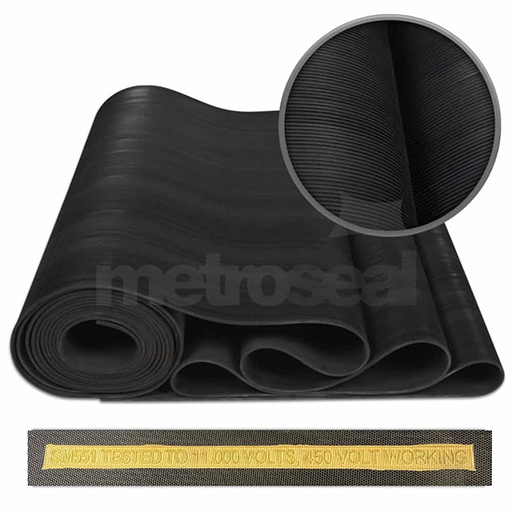

  • Regulatory branding on reverse every 1000mm
  • Ensures safety for operatives at lower voltage switchboard and high equipment atreas

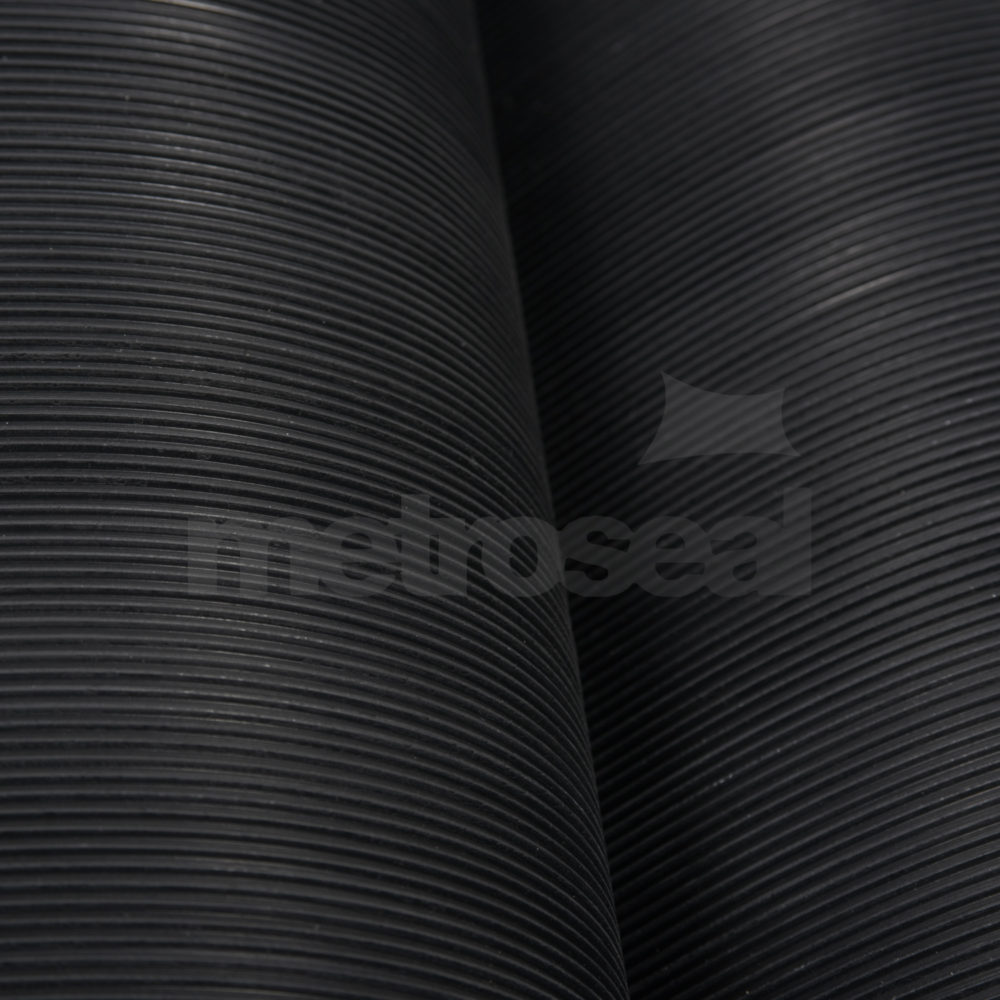

  • Anti-slip finish
  • Low maintenance



Cut lengths available to order. SM551 can also be supplied to order in colours and flame retardant, low smoke emission grades

Technical Data

Stock Roll Sizes [m x m x mm]Weight [kg/M2]
10m x 0.91m x 6mm 6.80
10m x 1.0m x 6mm 6.80
10m x 1.2m x 6mm 6.80
Specifications CompoundValues [typical]
Colour: Black
Compound:: SBR/NR
Hardness Shore 'A' (±5): 70°
Density (S.G.): 1.5
Tensile Strength (Kg/cm2): 40
Elongation at break (%): 200
Abrasion Resistance [mm³]: 180 mm³
Minimum Temperture: -20°C
Maximum Temperture: +70°C
Test Voltage (See Data): 11kv
