Fine Ribbed Black NR/SBR Rubber Matting 17,000v

SM570-02 Fine Ribbed Rubber Matting to IEC61111-2009 Class 2 is a high quality electrical safety matting fully tested to 30,000 volts with regulation standard stamped on reverse of roll at 1000mm intervals.
Maximum safety working voltage of 17,000v.

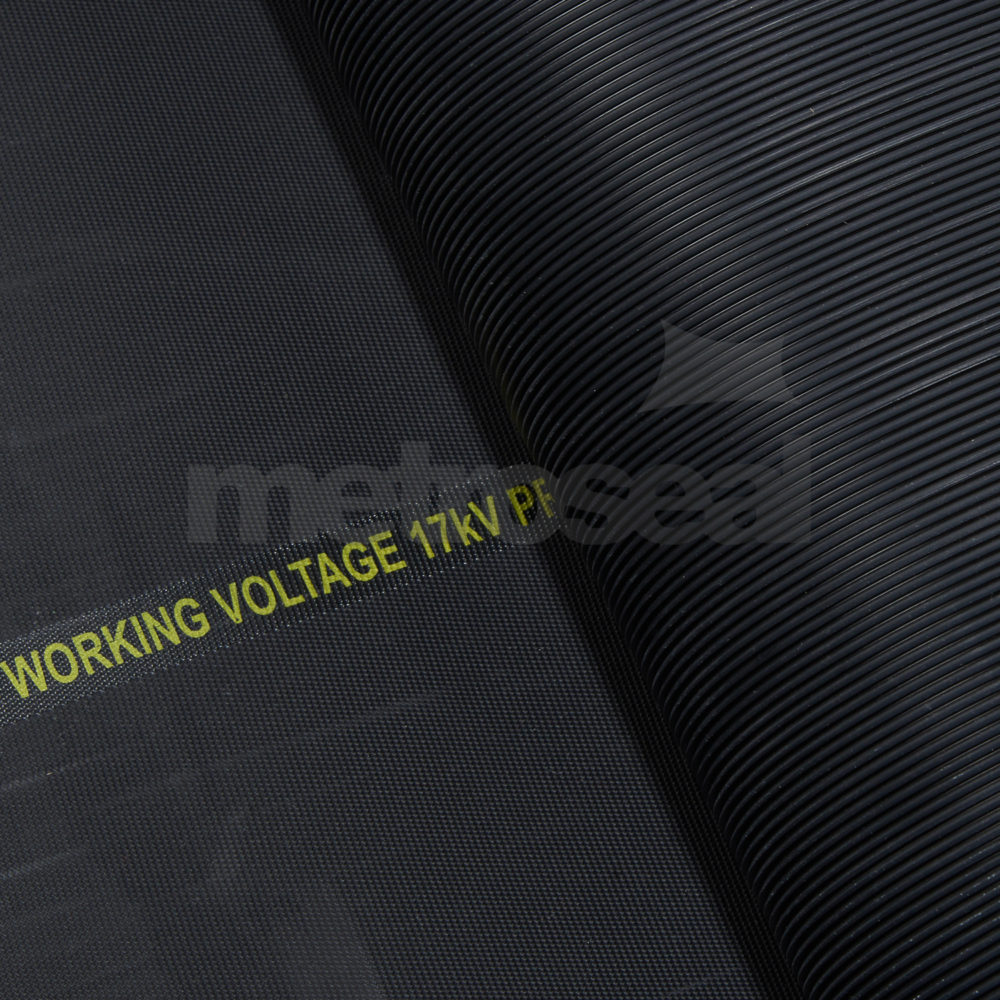

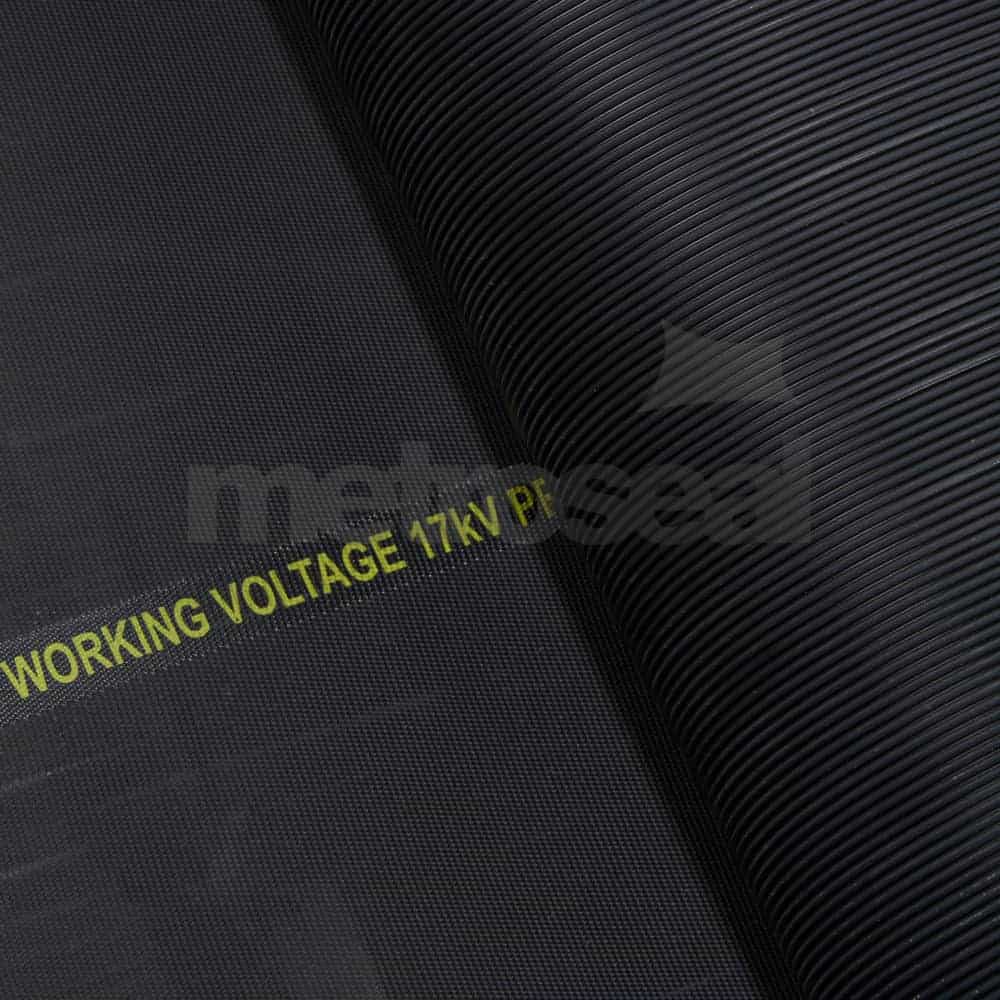

It has a fine ribbed, anti-slip surface pattern on one side and a cloth impression finish on the reverse.

Class 2

• REACH RoHS, PAH and CE Compliant
• PAH compliant means Odour free unlike cheaper grades
• Withstand Test: 30kv – No Electrical Puncture
• Puncture Proof Test: – 20KV for 3 minutes
• Working Voltage: – 17 KV
• Thickness 4mm
• HALOGEN FREE, LSOH (Low Smoke Zero Halogen)
• Excellent Resistance to acid/alkali
• Full test report included with Data sheet PDF
• Fully tested to specification
• Health & Safety regulation material
• Fully traceable supply
• Regulatory branding on reverse
• Anti-slip finish
• Low maintenance

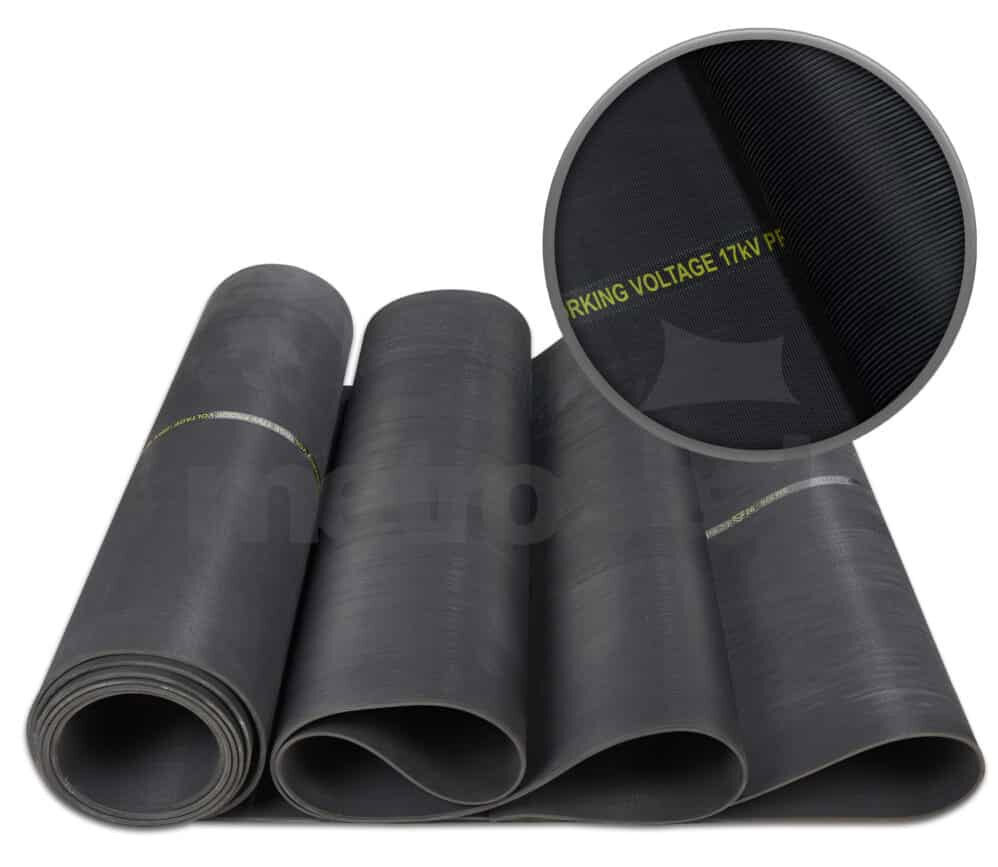

• Available 0.91m, 1.0m and 1.2m wide rolls
• THIS GRADE DOES NOT CONTAIN RECYCLED RUBBER
• Cut lengths available to order

This Product is REACH, RoHS, PAH and CE Compliant.

Due to the very high quality of METROSEAL raw materials the need for additional thickness is not necessary. The IEC:61111 specification only states ‘maximum’ thickness with minimum thickness being determined by suppliers’ ability to pass the correct tests defined in Clause 5 of specification. The above materials do so with the ‘integral’ layflat quality of the rubber compounds use not impaired in any way.
In addition to the above our thinner grades present less of a trip hazard when laid offering additional safety to operators.
Standard finishes on this type are FINE RIBBED [corrugated] one side with an anti-creep impression on reverse.

MARKINGS

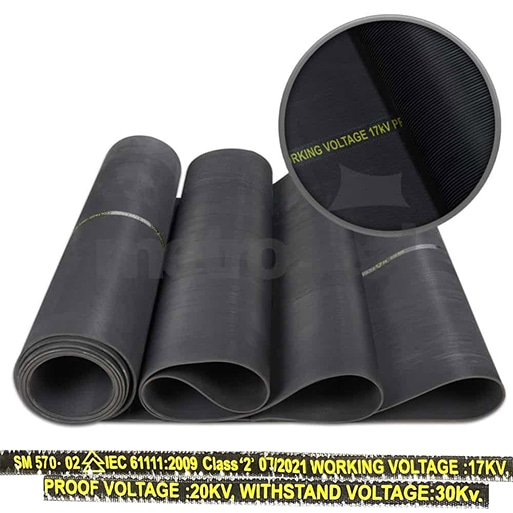

The example marking on the underside of the mat will consist of a tag denoting details as right:
The brand shall be placed at 1000mm intervals along length of rolls.
The brand shall be colour coded as per IEC:61111:2009 guidelines.
Class ‘O’ – RED, Class ‘1’ – WHITE, Class ‘2’ – YELLOW, Class ‘3’ – GREEN, Class ‘4’ – ORANGE.
