Item Code: SM120

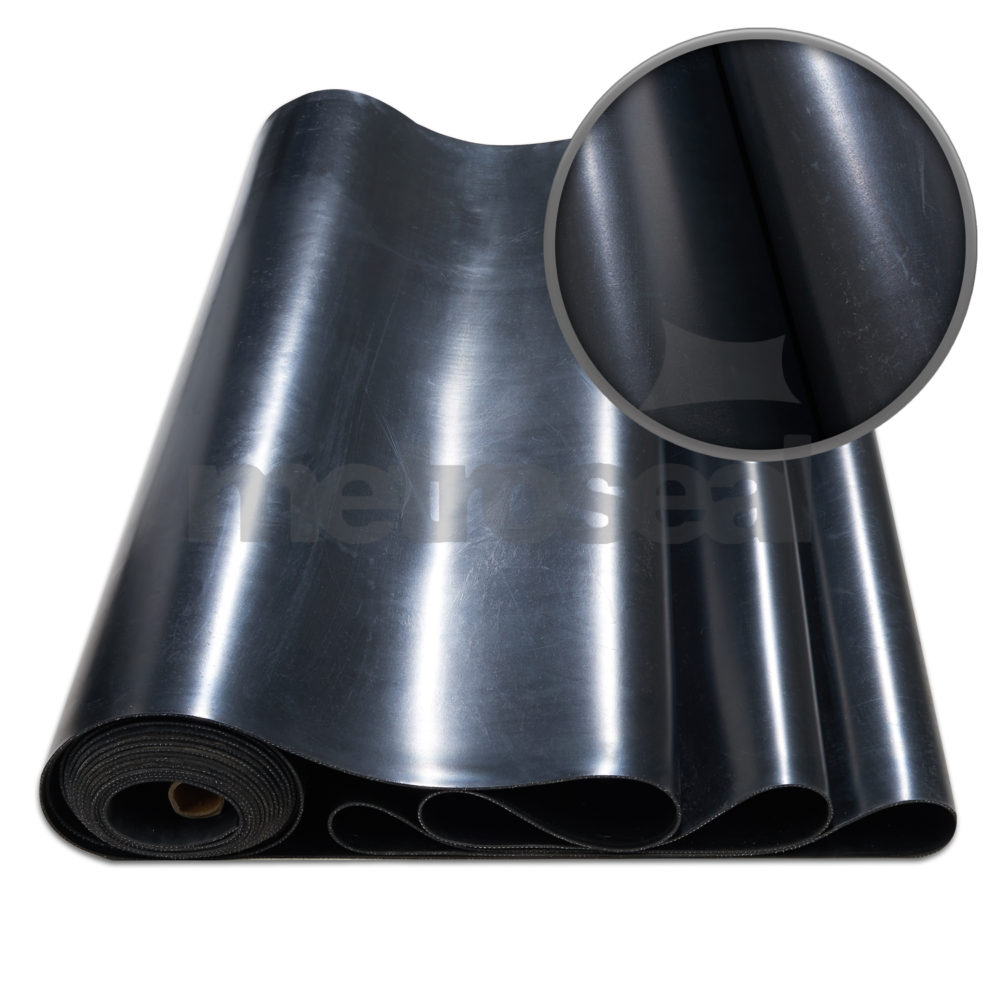

Black Economy 1 ply insertion NR / SBR Rubber 70° shore

SM120 Black Commercial quality 1 ply insertion NR / SBR 70° is an ‘economy’ grade commercial quality Natural Rubber and Styrene Butadiene rubber blend with Polyester insertion.

  • Material Profile: See below
  • Thickness: 1.5mm to 10mm
  • Sheet Size: 1.4m wide in 5m,10m and 20m rolls
  • Finish: Smooth (SS)
  • Cutting: Standard press-tools

Other grades, colours and finishes are available – subject to minimum batch quantities

Technical Data

Stock Roll Sizes [m x m x mm]Surface FinishWeight [kg/M2]
1.5mm x 1400mm x 10m 240
2mm x 1400mm x 10m 3.20
2.5mm x 1400mm x 10m 400
3mm x 1400mm x 10m 4.80
4mm x 1400mm x 10m 6.40
5mm x 1400mm x 10m 8,00
6mm x 1400mm x 10m 9.60
8mm x 1400mm x 5m 12.80
10mm x 1400mm x 5m 16.00
12mm x 1400mm x 5m 18.20
Specifications CompoundValues [typical]
Colour: Black
Compound: NR/SBR
Density (S.G.): 1.6
Hardness Shore 'A' (±5): 70° ± 5°
Tensile Strength (Kg/cm2): 30
Elongation at break (%): 200
Minimum Temperature: -20°C
Maximum temperature: +70°C
Abrasion resistance (mmᶾ): NA
